LXR8-SW27 LED, LUXEON M, Warm White, 760LM, 2700K LUMILEDS

LUMILEDSSKU:LXR8-SW27 Bestelcode:2336354

Prijs:
Actie prijs€9,70

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (16 units)

Documenten en downloads

Omschrijving

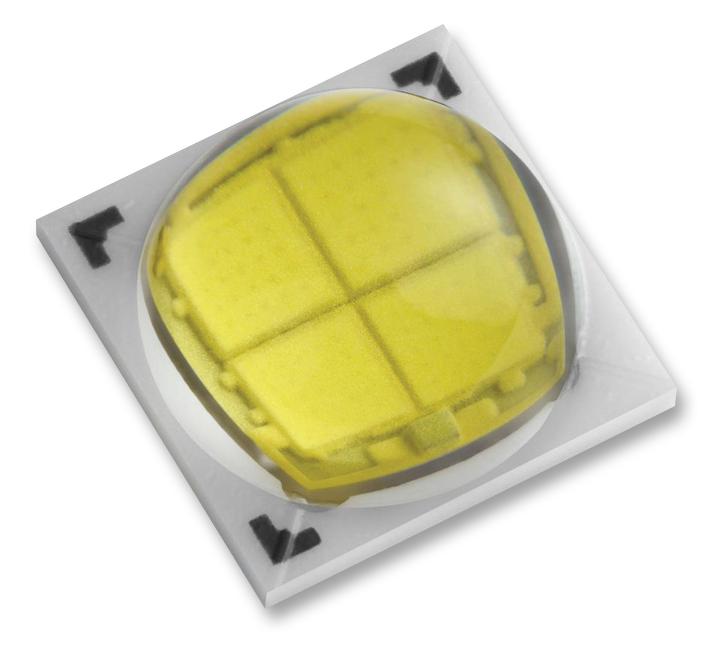

LUMILEDS - LXR8-SW27 - LED, Warm White, 80 CRI Rating, 760 lm, 700 mA, 120 °, 2700 K, 2828 Package, Dome

  • COB Colour: Warm White
  • Color Rendering Index Max: 80
  • Power Rating: -
  • Luminous Flux @ Test: 760lm
  • Forward Current @ Test: 700mA
  • Viewing Angle: 120°
  • Forward Voltage VF Typ: 12V
  • Nominal CCT (K): 2700 K
  • COB Length: 7mm
  • COB Width: 7mm
  • Opto Case Style: 2828
  • Lumens / Watt @ Current Test: -
  • Light Emitting Surface: -
  • Lens Type: -
  • Lens Shape: Dome
  • Height: 3.75mm
  • Product Range: LUXEON M Series
  • SVHC: No SVHC (07-Jul-2017)
  • CCT: 2700K
  • Forward Current If Max: 1.05A
  • Forward Voltage @ Test: 12V
  • LED Colour: White
  • LED Mounting: SMD
  • No. of Pins: 3Pins
  • Operating Temperature Max: 120°C
  • Operating Temperature Min: -40°C
  • Power @ Test: 8.4W
