Omschrijving

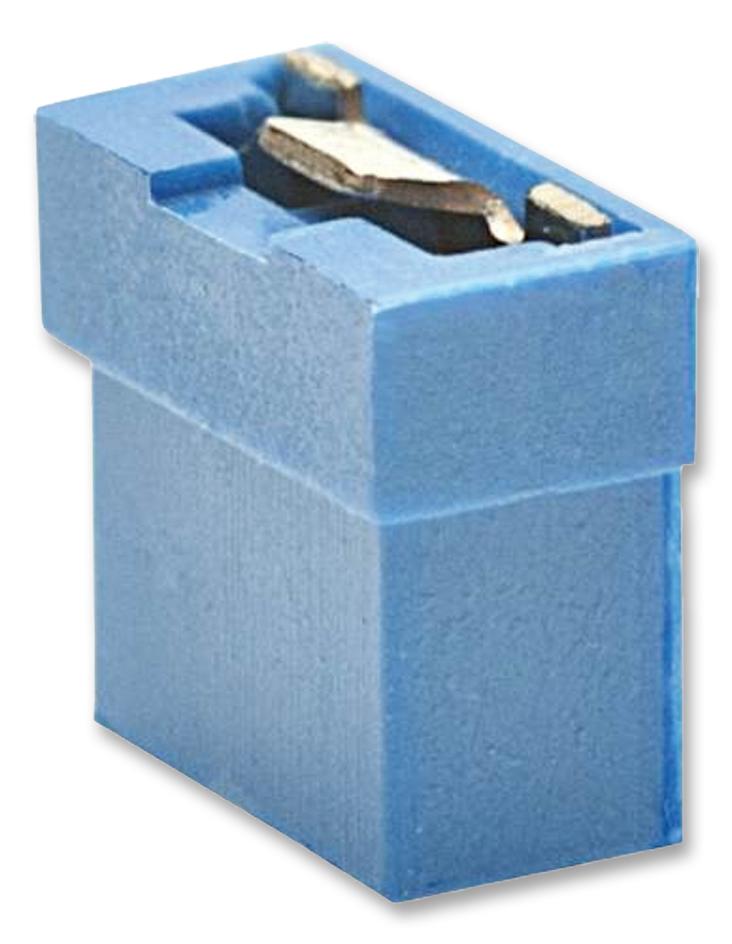

HARWIN - M22-1910005 - Jumper (Busbar), Shunt, Pin Headers, 2 Ways, 2 mm, M22 Series Jumpers
- Accessory Type: Shunt
- For Use With: Pin Headers
- No. of Positions: 2Ways
- Pitch Spacing: 2mm
- Product Range: M22 Series Jumpers
- SVHC: No SVHC (15-Jan-2019)
- Contact Plating: Gold Plated Contacts
- Contact Resistance: 30mohm
- Current Rating: 2A
- Current Temperature: 25°C
- De-mating Force: 0.6N
- External Depth: 1.95mm
- External Length / Height: 3.5mm
- External Width: 3.9mm
- Mating Force: 4.5N
- No. of Mating Cycles: 300
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Working Voltage: 250V
