Omschrijving

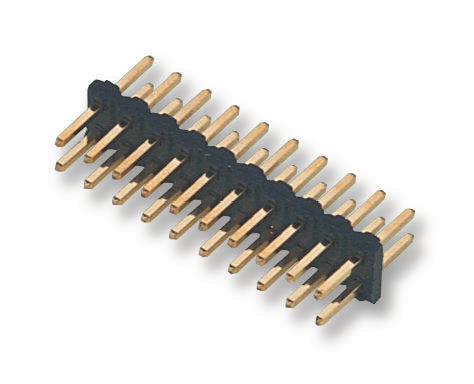

HARWIN - M22-2020405 - Pin Header, Vertical, Board-to-Board, 2 mm, 2 Rows, 8 Contacts, Through Hole Straight, M22
- Pitch Spacing: 2mm
- No. of Contacts: 8Contacts
- Gender: Header
- Product Range: M22 Series
- Contact Termination Type: Through Hole
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Current Rating: 1A
- Current per Contact Max: 2A
- Flammability Rating: UL94V-0
- Insulation Resistance: 10000Mohm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -41°C
- Voltage Rating VAC: 250V
- Working Voltage: 250V
