Omschrijving

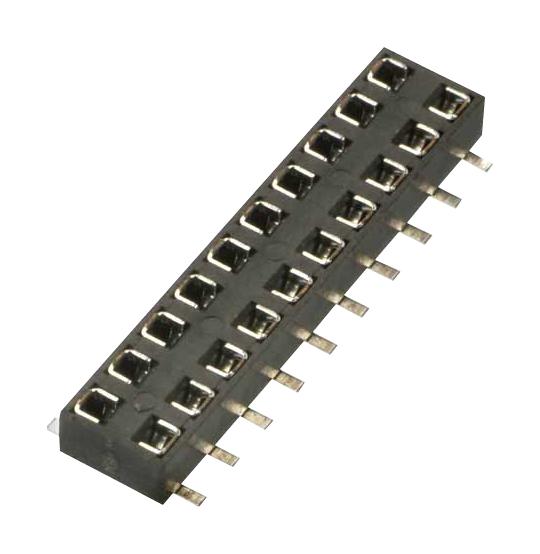

HARWIN - M22-6360542 - PCB Receptacle, Board-to-Board, 2 mm, 2 Rows, 10 Contacts, Surface Mount, M22
- Pitch Spacing: 2mm
- No. of Contacts: 10Contacts
- Gender: Receptacle
- Product Range: M22 Series
- Contact Termination Type: Surface Mount
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Contact Termination: Surface Mount Vertical
- Current Rating: 1A
- Flammability Rating: UL94V-0
- Insulation Resistance: 10000Mohm
- Lead Spacing: 2mm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -41°C
- Termination Method: Solder
- Working Voltage: 250V
