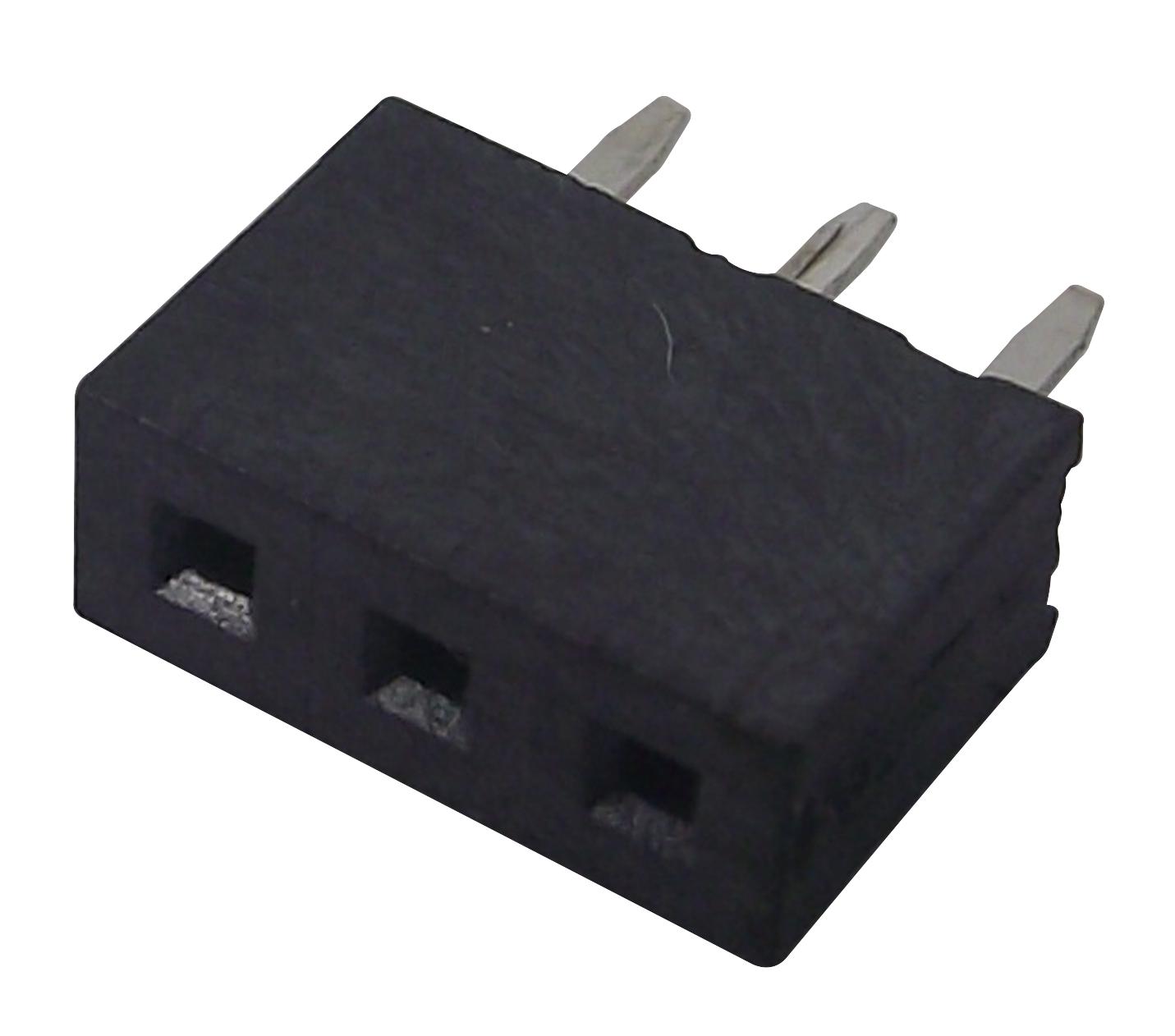

M22-7130342 Socket, Vertical, 1ROW, 3WAY Harwin

HARWINSKU:M22-7130342 Bestelcode:1109726

Prijs:
Actie prijs€2,55

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1127 units)

Documenten en downloads

Omschrijving

HARWIN - M22-7130342 - PCB Receptacle, Board-to-Board, 2 mm, 1 Rows, 3 Contacts, Through Hole Mount, M22

  • Pitch Spacing: 2mm
  • No. of Contacts: 3Contacts
  • Gender: Receptacle
  • Product Range: M22 Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 1Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (15-Jan-2019)
  • Colour: Black
  • Contact Resistance: 20mohm
  • Contact Termination: Through Hole Vertical
  • Current Rating: 1A
  • De-mating Force: 0.2N
  • External Length / Height: 4.4mm
  • External Width: 2.4mm
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 5000Mohm
  • Lead Spacing: 2mm
  • Material: Nylon 6T
  • Mating Force: 2N
  • No. of Mating Cycles: 50
  • Operating Temperature Max: +105°C
  • Operating Temperature Min: -40°C
  • Proof Voltage: 500V
  • Termination Method: Solder
