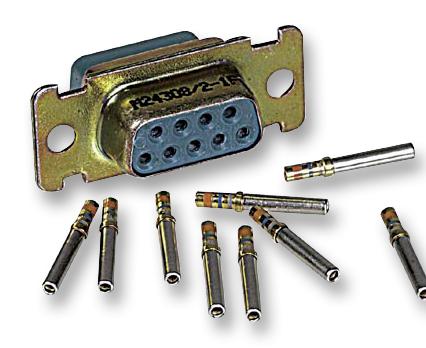

CINCH CONNECTIVITY SOLUTIONS - M24308/2-1F - D Sub Connector, DB9, Standard, Receptacle, M24308, 9 Contacts, DE, Crimp
- No. of Contacts: 9Contacts
- Gender: Receptacle
- Contact Termination Type: Crimp
- D Sub Shell Size: DE
- Product Range: M24308 Series
- Connector Body Material: Metal Body
- Contact Material: -
- Contact Plating: -
- SVHC: No SVHC (15-Jan-2018)
- Connector Mounting: Cable Mount
- Contact Resistance: 2.7mohm
- Contact Termination: Crimp
- Current Rating: 5A
- D Sub Connector Type: Standard
- Flammability Rating: UL94V-0
- Insulation Resistance: 5000Mohm
- Material: Steel with cadmium plating
- No. of Mating Cycles: 500
- Operating Temperature Max: 125°C
- Operating Temperature Min: -65°C
- Termination Method: Crimp
- Withstand Voltage: 1250V
