Omschrijving

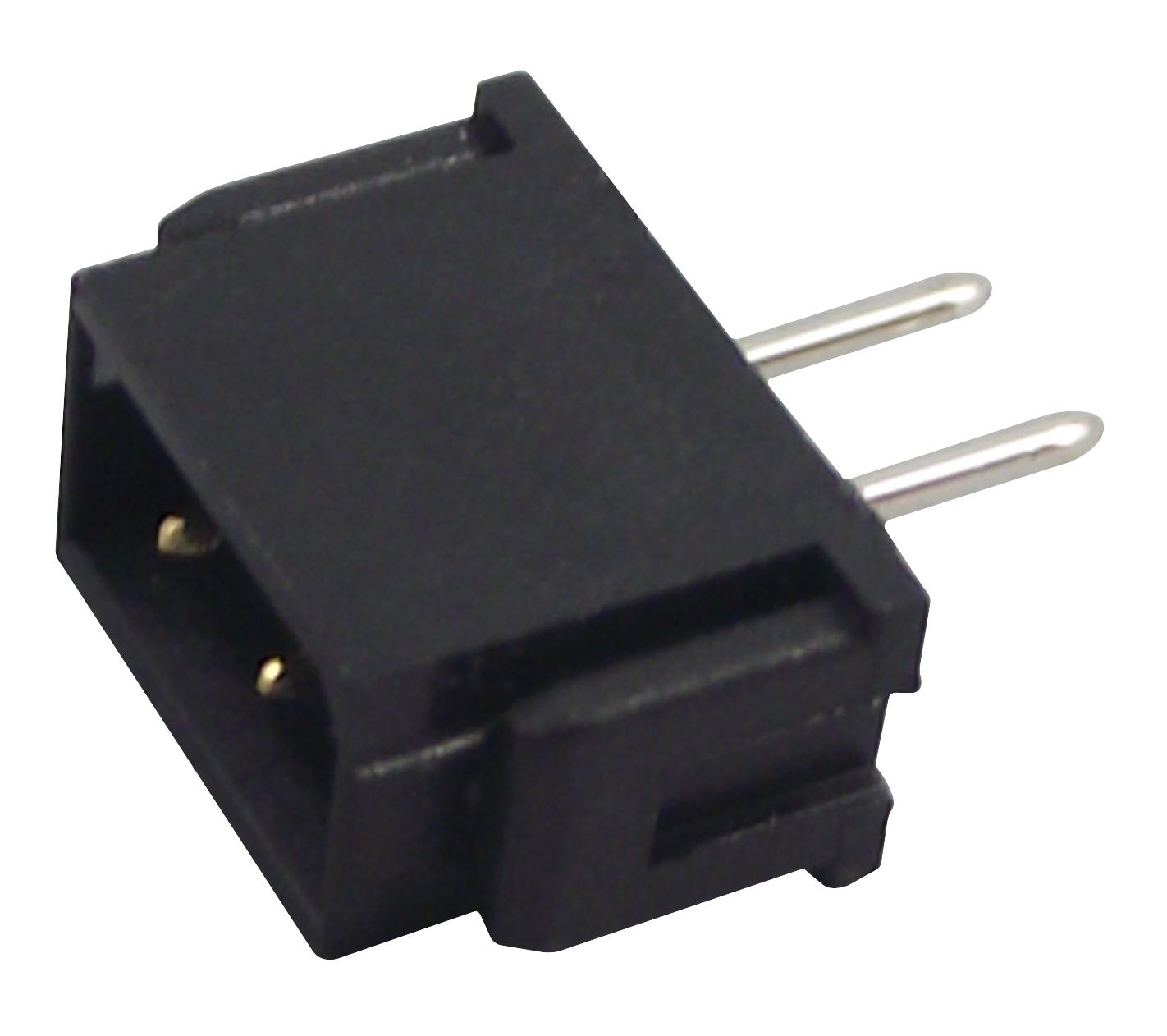

HARWIN - M80-8520242 - Pin Header, Vertical, Board-to-Board, Wire-to-Board, 2 mm, 1 Rows, 2 Contacts
- Pitch Spacing: 2mm
- No. of Contacts: 2Contacts
- Gender: Plug
- Product Range: Datamate L-Tek M80 Series
- Contact Termination Type: Through Hole
- No. of Rows: 1Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Contact Resistance: 25mohm
- Contact Termination: Through Hole Vertical
- Current Rating: 3.3A
- Flammability Rating: UL94V-0
- Insulation Resistance: 100mohm
- Lead Spacing: 2mm
- Material: Glass Filled Thermoplastic
- No. of Mating Cycles: 500
- Proof Voltage: 360V
- Termination Method: Solder
- Wire Size AWG Max: 22AWG
- Wire Size AWG Min: 28AWG
- Working Voltage: 120V
