Mak 5100 60 Socket, DIN, Free, 60DEG, 5Pin Hirschmann

HIRSCHMANNSKU:MAK 5100 60 Bestelcode:496730

Prijs:
Actie prijs€13,80

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (5 units)

Documenten en downloads

Omschrijving

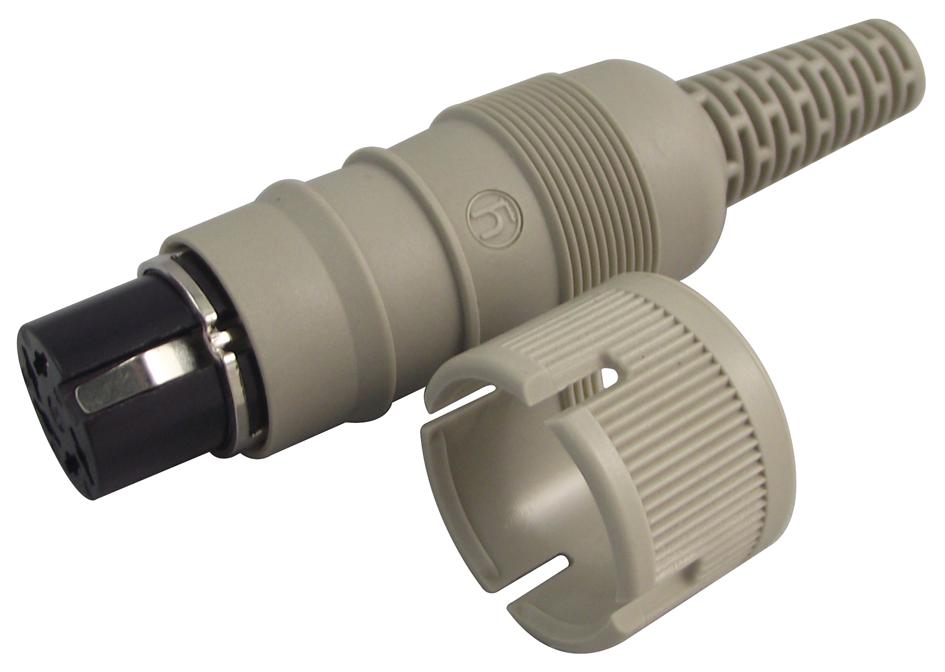

HIRSCHMANN - MAK 5100 60 - DIN Audio / Video Connector, 60°, 5 Contacts, Jack, Cable Mount, Solder, Tin Plated Contacts

  • No. of Contacts: 5Contacts
  • Gender: Jack
  • Connector Mounting: Cable Mount
  • Contact Termination: Solder
  • Contact Plating: Tin Plated Contacts
  • Connector Body Material: -
  • Product Range: -
  • SVHC: Lead (27-Jun-2018)
  • Cable Diameter Max: 5.5mm
  • Colour: Grey
  • Connector Colour: Grey
  • Connector Type: DIN Audio
  • Contact Resistance: 10mohm
  • DC Current Max: 4A
  • External Length / Height: 58.6mm
  • Flammability Rating: UL94V-2
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -20°C
  • Voltage Rating V DC: 34V
  • Voltage Rating VAC: 24V
  • Wire Area Size Max: 0.34mm²
