Omschrijving

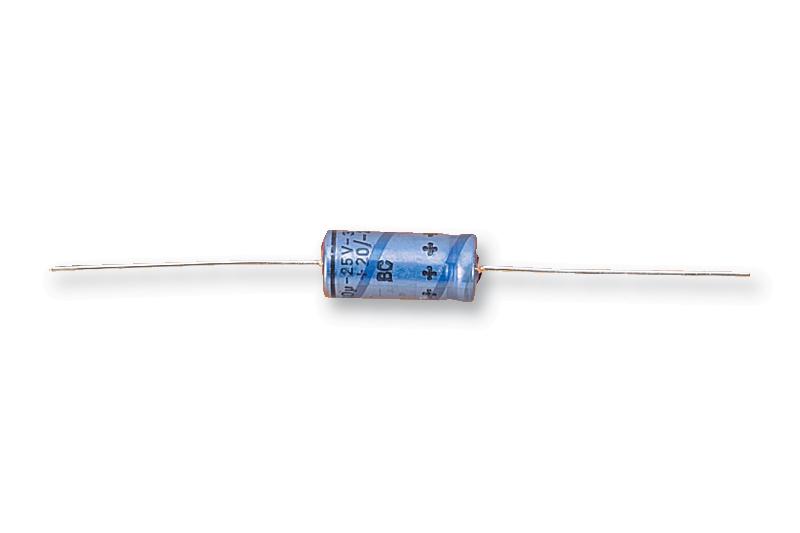

VISHAY - MAL202117332E3 - Electrolytic Capacitor, Miniature, 3300 µF, 40 V, ± 20%, Axial Leaded, 5000 hours @ 85°C, Polar
- Capacitance: 3300µF
- Voltage Rating: 40V
- Product Range: 021 ASM Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Axial Leaded
- Diameter: 18mm
- Lead Spacing: -
- Height: 38mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Lifetime @ Temperature: 5000 hours @ 85°C
- ESR: 0.09ohm
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- AC Ripple Current @ 100Hz: 1810mA
- Capacitance Tolerance ±: ± 20%
- Capacitor Mounting: Through Hole
- Climatic Category: 55/085/56
- External Length / Height: 38mm
- Lead Diameter: 0.8mm
- Leakage Current: 268µA
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +85°C
- Operating life Time: 8000h
- Ripple Current AC: 1500mA
- Ripple Current Frequency: 100Hz
- Ripple Current Temperature: 85°C
- Tolerance +: 0.2%
- Tolerance -: 0.2%
- Voltage Rating DC Max: 40V
- Voltage Rating V DC: 40V
