MAL211818221E3 Cap, 220µF, 63V, 20%, Through Hole Vishay

VISHAYSKU:MAL211818221E3 Bestelcode:1692351

Prijs:
Actie prijs€7,71

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (214 units)

Omschrijving

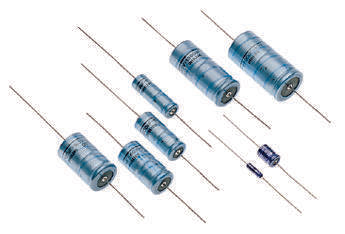

VISHAY - MAL211818221E3 - Electrolytic Capacitor, 220 µF, 63 V, ± 20%, Axial Leaded, 8000 hours @ 125°C, Polar

  • Capacitance: 220µF
  • Voltage Rating: 63V
  • Product Range: -
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Axial Leaded
  • Diameter: 12.5mm
  • Lead Spacing: -
  • Height: 30mm
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 125°C
  • Lifetime @ Temperature: 8000 hours @ 125°C
  • ESR: 0.94ohm
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2018)
  • AC Ripple Current @ 100Hz: 550mA
  • Capacitance Tolerance ±: ± 20%
  • Capacitor Mounting: Through Hole
  • External Length / Height: 30mm
  • Lead Diameter: 0.8mm
  • Leakage Current: 32µA
  • No. of Pins: 2Pins
  • Operating Temperature Range: -55°C to +125°C
  • Operating life Time: 8000h
  • Ripple Current Frequency: 100Hz
  • Ripple Current Temperature: 125°C
  • Tolerance +: 0.2%
  • Tolerance -: 0.2%
  • Voltage Rating DC Max: 63V
  • Voltage Rating V DC: 63V
