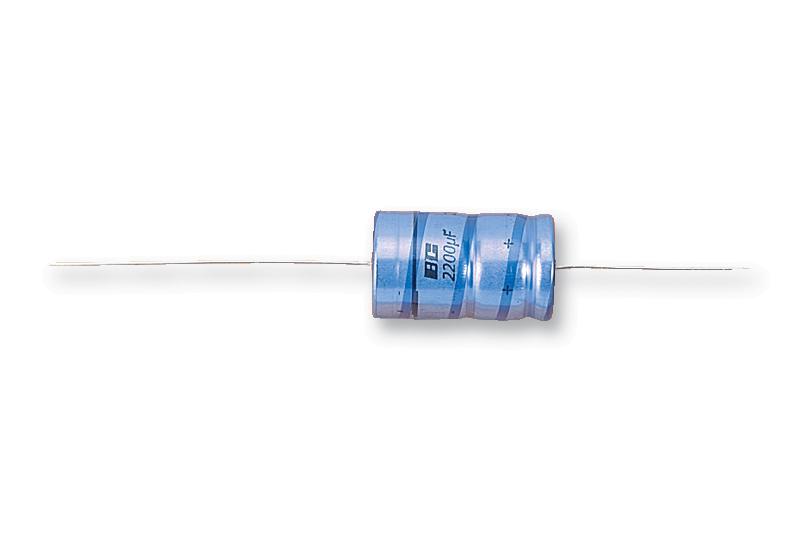

VISHAY - MAL212016222E3 - Electrolytic Capacitor, 2200 µF, 25 V, ± 20%, Axial Leaded, 8000 hours @ 125°C, Polar
- Capacitance: 2200µF
- Voltage Rating: 25V
- Product Range: 120 ATC Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Axial Leaded
- Diameter: 18mm
- Lead Spacing: -
- Height: 30mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Lifetime @ Temperature: 8000 hours @ 125°C
- ESR: 0.027ohm
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- AC Ripple Current @ 100Hz: 3310mA
- Capacitance Tolerance ±: ± 20%
- Capacitor Mounting: Through Hole
- Climatic Category: 40/125/56
- ESR Frequency: 100Hz
- External Length / Height: 30mm
- Lead Diameter: 0.8mm
- Leakage Current: 700µA
- No. of Pins: 2Pins
- Operating Life Temperature: 125°C
- Operating Temperature Range: -40°C to +125°C
- Operating life Time: 8000h
- Ripple Current AC: 3310mA
- Ripple Current Frequency: 10kHz
- Ripple Current Temperature: 125°C
- Tolerance +: 0.2%
- Tolerance -: 0.2%
- Voltage Rating DC Max: 25V
- Voltage Rating V DC: 25V
