MAL215957331E3 Cap, 330µF, 450V, Alu Elec, Snap In Vishay

VISHAYSKU:MAL215957331E3 Bestelcode:2102690

Prijs:
Actie prijs€19,40

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (512 units)

Documenten en downloads

Omschrijving

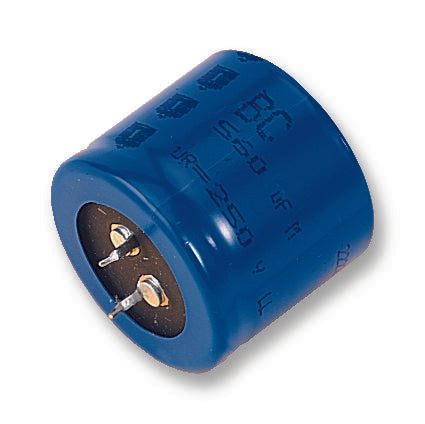

VISHAY - MAL215957331E3 - Electrolytic Capacitor, Snap-in, 330 µF, 450 V, ± 20%, Quick Connect, Snap-In, 5000 hours @ 105°C

  • Capacitance: 330µF
  • Voltage Rating: 450V
  • Product Range: 159 PUL-SI Series
  • Lifetime @ Temperature: 5000 hours @ 105°C
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Quick Connect, Snap-In
  • Diameter: 35mm
  • Lead Spacing: 10mm
  • Operating Temperature Min: -25°C
  • Operating Temperature Max: 105°C
  • Height: 40mm
  • ESR: 0.3ohm
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • AC Ripple Current @ 100Hz: 1.61A
  • Capacitance Tolerance ±: ± 20%
  • Capacitor Mounting: Through Hole
  • External Length / Height: 40mm
  • Leakage Current: 1.48mA
  • No. of Pins: 2Pins
  • Operating Temperature Range: -25°C to +105°C
  • Operating life Time: 5000h
  • Ripple Current AC: 1.61A
  • Ripple Current Frequency: 120Hz
  • Ripple Current Temperature: 105°C
  • Tolerance +: 0.2%
  • Tolerance -: 0.2%
  • Voltage Rating DC Max: 450V
  • Voltage Rating V DC: 450V
