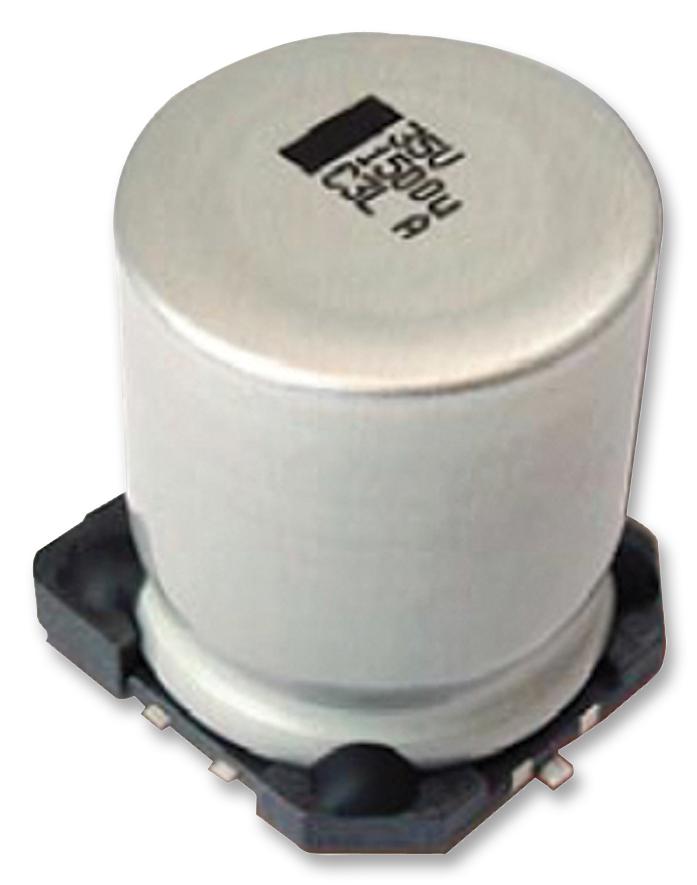

VISHAY - MAL216099104E3 - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 330 µF, 50 V, 1500 hours @ 150°C, Polar
- AE Capacitor Case: Radial Can - SMD
- Capacitance: 330µF
- Voltage Rating: 50V
- ESR: -
- Product Range: 160 CLA Series
- Lifetime @ Temperature: 1500 hours @ 150°C
- Operating Temperature Min: -50°C
- Operating Temperature Max: 150°C
- Ripple Current AC: 700mA
- Diameter: 16mm
- Height: 16mm
- Automotive Qualification Standard: AEC-Q200
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- AC Ripple Current @ 100Hz: 700mA
- Capacitance Tolerance: ± 20%
- Capacitance Tolerance ±: ± 20%
- Capacitor Case Style: Radial Can - SMD
- Capacitor Mounting: SMD
- Capacitor Terminals: SMD
- External Length / Height: 16mm
- Leakage Current: 165µA
- No. of Pins: 4Pins
- Operating Temperature Range: -55°C to +150°C
- Operating life Time: 1500h
- Ripple Current Temperature: 150°C
- Tolerance +: 0.2%
- Tolerance -: 0.2%
- Voltage Rating DC Max: 50V
- Voltage Rating V DC: 50V
