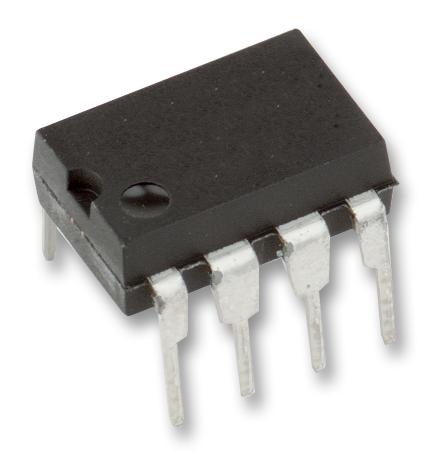

MAXIM INTEGRATED / ANALOG DEVICES - MAX517BCPA+ - Digital to Analogue Converter, 8 bit, 400 kSPS, 2 Wire, Serial, 4.5V to 5.5V, DIP, 8 Pins
- Resolution (Bits): 8bit
- Sampling Rate: 400kSPS
- Data Interface: 2 Wire, Serial
- Supply Voltage Range: 4.5V to 5.5V
- ADC / DAC Case Style: DIP
- No. of Pins: 8Pins
- Input Channel Type: Serial
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2018)
- A/D / D/A Features: Double-Buffered, Internal Reference, Rail-to-Rail, Voltage O/P
- Base Number: 517
- Conversion Time: 1µs
- IC Temperature Range: Commercial
- Linearity Error: 1%
- Linearity Error ADC / DAC +: 1LSB
- Linearity Error ADC / DAC -: 1LSB
- Logic Function Number: 517
- No. of Channels: 1Channels
- Operating Temperature Range: 0°C to +70°C
- Output Type: Rail-to-Rail
- Power Dissipation Ptot Max: 727mW
- Sample Rate: 400kSPS
- Settling Time: 1µs
- Supply Current: 1.5mA
- Supply Voltage Max: 5.5V
- Supply Voltage Min: 4.5V
