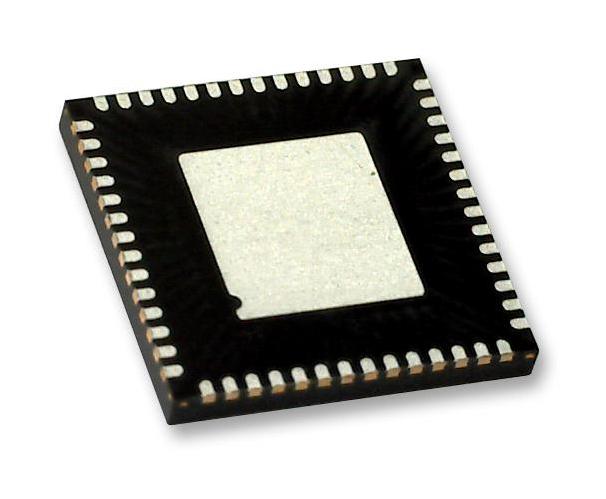

MAXIM INTEGRATED / ANALOG DEVICES - MAX9709ETN+D - Audio Power Amplifier, 50 W, D, 2 Channel, 10V to 22V, TQFN, 56 Pins
- Output Power: 50W
- Amplifier Class: D
- No. of Channels: 2 Channel
- Supply Voltage Range: 10V to 22V
- Amplifier Case Style: TQFN
- No. of Pins: 56Pins
- Load Impedance: 4ohm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2018)
- Amplifer Supply Voltage: 10V to 22V
- Amplifier Type: Audio
- Audio Power Amplifier Type: Class D
- No. of Amplifiers: 1Amplifiers
- No. of Channels: 2Channels
- Operating Temperature Range: -40°C to +85°C
- Output Power (Pout): 50W
- Power Rating RMS: 25W
- Programmable Gain Max: 63.0
- Programmable Gain Min: 12.6
- Supply Current: 20mA
- Supply Voltage + Nom: 30V
- Supply Voltage Max: 22V
- Supply Voltage Min: 10V
- THD + N: 0.1% @ 12W, VDD=20V
- Termination Type: Surface Mount Device
