Omschrijving
- Diode Configuration: Dual Isolated
- Repetitive Reverse Voltage Vrrm Max: 30V
- Forward Current If(AV): 200mA
- Forward Voltage VF Max: 400mV
- Forward Surge Current Ifsm Max: 600mA
- Operating Temperature Max: 125°C

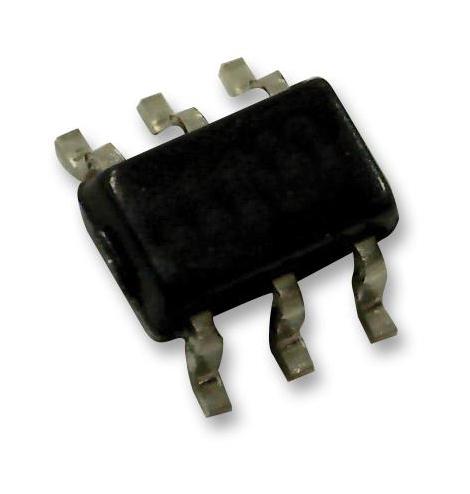

- Diode Case Style: SOT-363
- No. of Pins: 6Pins
- Product Range: MBD54 Series
- Automotive Qualification Standard: AEC-Q101
- SVHC: No SVHC (27-Jun-2018)
- Current Ifsm: 600mA
- Diode Type: Ultrafast Recovery
- Junction Temperature Tj Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Reverse Recovery Time trr Max: 5ns
- Reverse Recovery Time trr Typ: 5ns
- Termination Type: Surface Mount Device
