Omschrijving

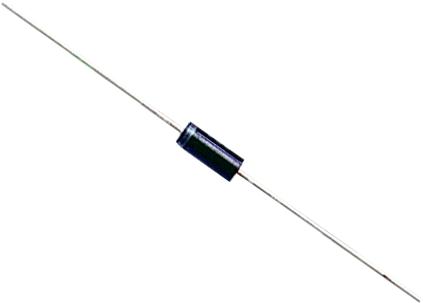

ONSEMI - MBR150RLG - Schottky Rectifier, 50 V, 1 A, Single, DO-41 (DO-204AL), 2 Pins, 750 mV
- Repetitive Reverse Voltage Vrrm Max: 50V
- Forward Current If(AV): 1A
- Diode Configuration: Single
- Diode Case Style: DO-41 (DO-204AL)
- No. of Pins: 2Pins
- Forward Voltage VF Max: 750mV
- Forward Surge Current Ifsm Max: 25A
- Operating Temperature Max: 150°C
- Product Range: MBR15 Series
- Automotive Qualification Standard: -
- SVHC: Lead (27-Jun-2018)
- Current Ifsm: 25A
- Current Ir Max: 500µA
- Diode Type: Schottky
- Forward Voltage: 750mV
- Junction Temperature Tj Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Semiconductor Technology: Si
- Termination Type: Axial Leaded
