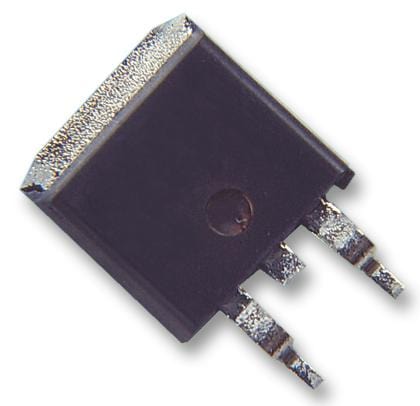

ONSEMI - MBRB2545CTT4G - Schottky Rectifier, 45 V, 30 A, Dual Common Cathode, TO-263 (D2PAK), 2 Pins, 820 mV
- Repetitive Reverse Voltage Vrrm Max: 45V
- Forward Current If(AV): 30A
- Diode Configuration: Single
- Diode Case Style: TO-263
- No. of Pins: 2Pins
- Forward Voltage VF Max: 820mV
- Forward Surge Current Ifsm Max: 150A
- Operating Temperature Max: 175°C
- Product Range: MBRB2 Series
- Automotive Qualification Standard: -
- SVHC: Lead (27-Jun-2018)
- Breakdown Voltage Max: 45V
- Current Ifsm: 150A
- Current Ir Max: 200µA
- Diode Type: Schottky
- Forward Voltage: 820mV
- Junction Temperature Tj Max: 175°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +175°C
- Semiconductor Technology: Si
- Termination Type: Surface Mount Device
