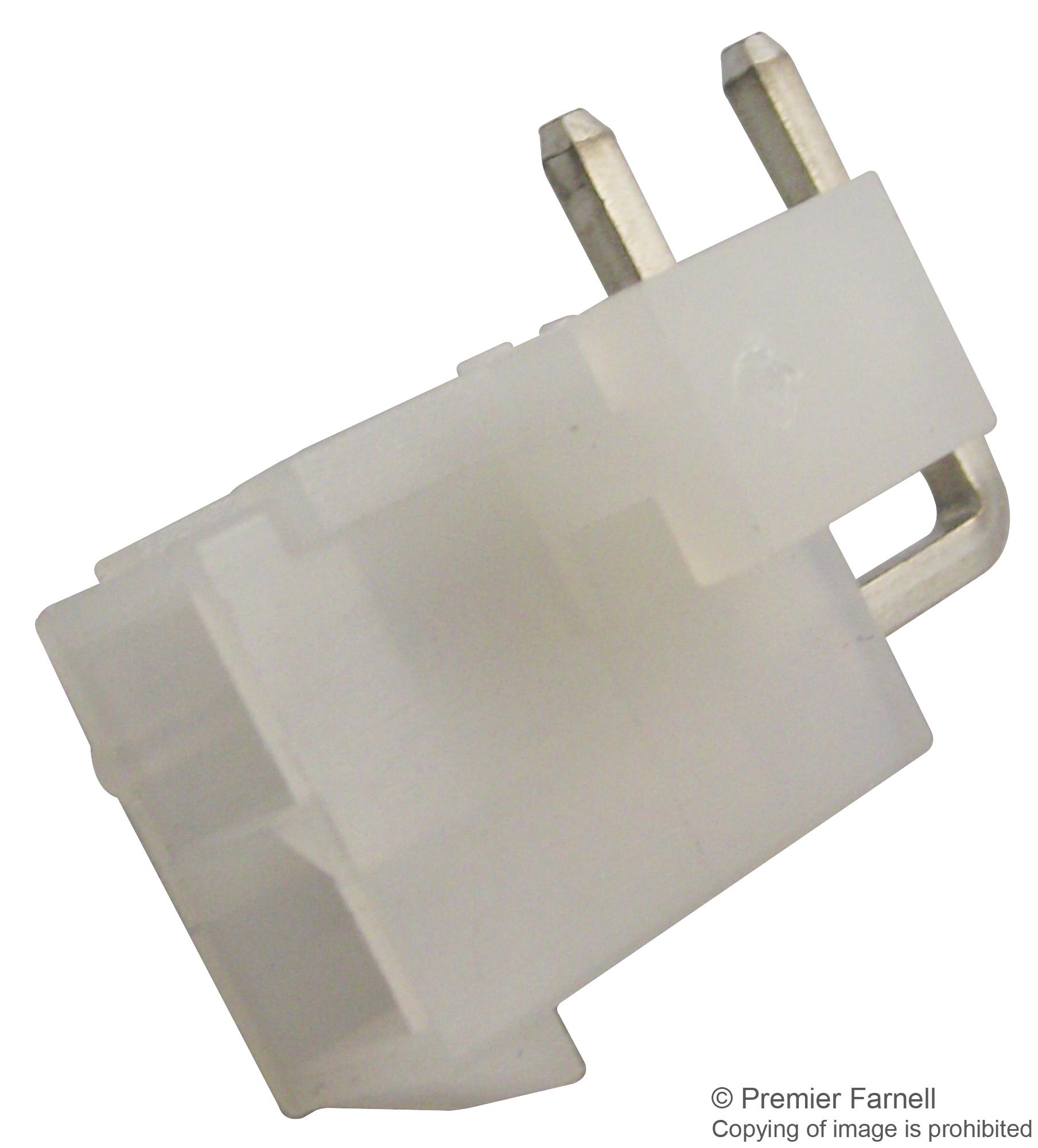

MULTICOMP PRO - MC34311 - Pin Header, Wire-to-Board, 4.2 mm, 2 Rows, 2 Contacts, Through Hole Right Angle, MC34
- Pitch Spacing: 4.2mm
- No. of Contacts: 2Contacts
- Gender: Header
- Product Range: MC34 Series
- Contact Termination Type: Through Hole
- No. of Rows: 2Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Copper Alloy
- SVHC: No SVHC (15-Jan-2019)
- Contact Resistance: 10mohm
- Current Rating: 9A
- Flammability Rating: UL94V-2
- Insulation Resistance: 1000Mohm
- Material: Nylon 6,6
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Row Pitch: 4.2mm
- Voltage Rating VAC: 600V
