Omschrijving

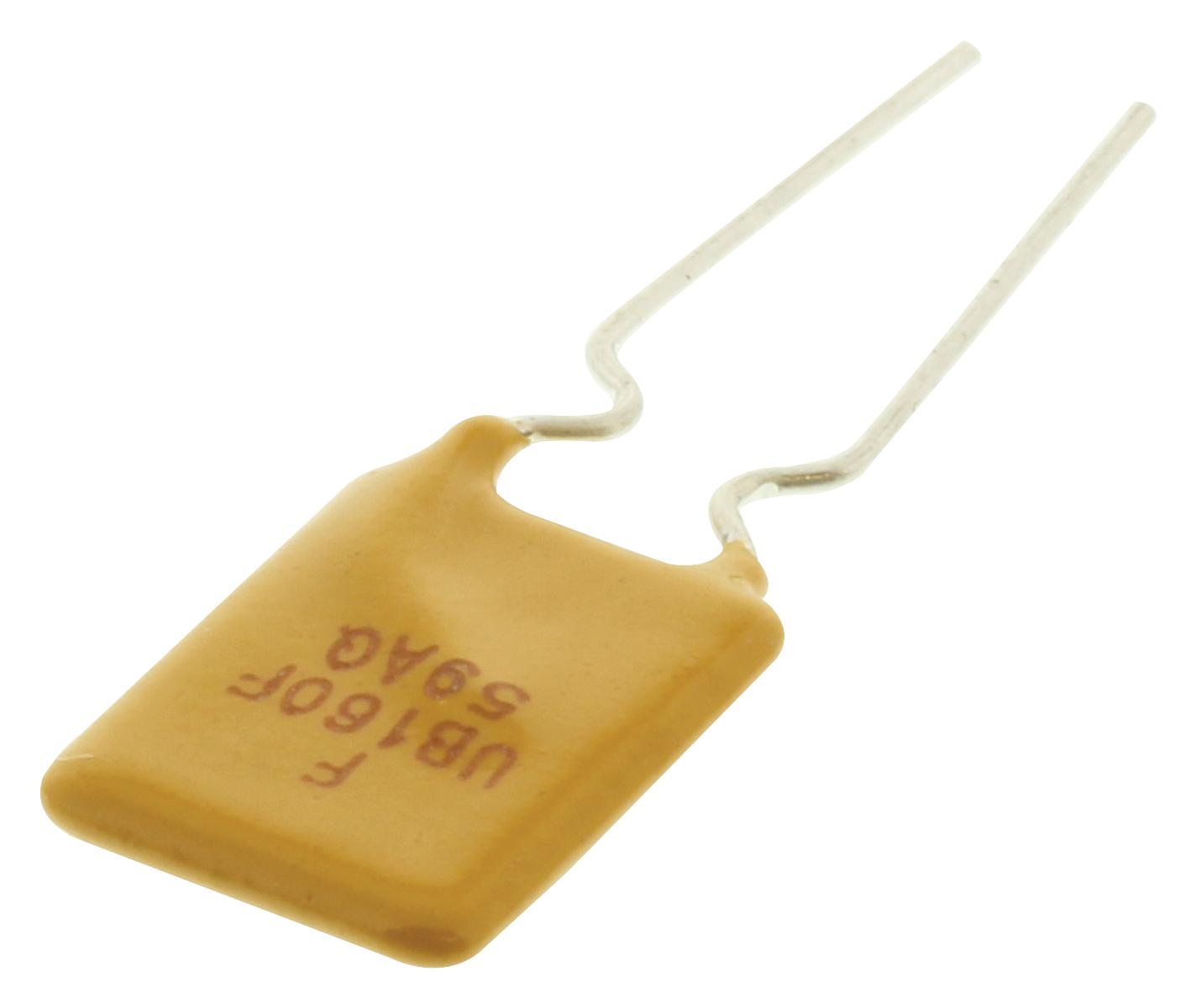

MULTICOMP PRO - MC36251 - Resettable Fuse, PPTC, MC36, 30 VDC, 1.6 A, 3.2 A, 9 s, Rectangular
- Thermistor Mounting: Through Hole
- Product Range: MC36 Series
- Holding Current: 1.6A
- Tripping Current: 3.2A
- Voltage Rating: 30VDC
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Carrying Current Max: 40A
- Current Max: 40A
- External Depth: 3mm
- External Length / Height: 15.2mm
- External Width: 8.9mm
- Holding Current Max Ih: 1.6A
- Initial Resistance Max: 0.11ohm
- Initial Resistance Min: 0.03ohm
- Lead Diameter: 0.51mm
- Lead Length: 7.6mm
- Lead Spacing: 5.1mm
- Operating Voltage: 30VDC
- Operating Voltage Max: 30VDC
- PTC Fuse Case Style: Radial Leaded
- Voltage: 30V
