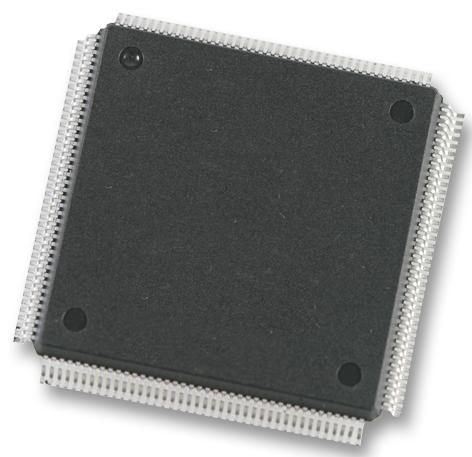

NXP - MC56F8367MPYE - Digital Signal Controller, MC56F83xx, 60 MHz, 512 KB, 76 I/O's, CAN, SCI, SPI, 2.5 V
- Product Range: MC56F83xx Series
- Core Frequency: 60MHz
- Flash Memory Size: 512KB
- No. of I/O's: 76I/O's
- Embedded Interface Type: CAN, SCI, SPI
- Core Supply Voltage: 2.5V
- DSC Case Style: LQFP
- No. of Pins: 160Pins
- Supply Voltage Min: 3V
- Supply Voltage Max: 3.6V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Controller Family/Series: 56F8x67
- IC Generic Number: 56F8367
- Logic Function Number: 8367MPYE
- MPU Core Size: 16bit
- Memory Type: Flash
- No. of ADC Inputs: 4
- No. of Bits: 16bit
- No. of External Interrupts: 2
- No. of MIPS: 60
- No. of PWM Channels: 12
- No. of Timers: 4
- Number of bits in ADC: 12
- Operating Temperature Range: -40°C to +125°C
- Program Memory Size: 576KB
- Qualified Segment: COMMERCIAL, INDUSTRIAL, AUTOMOTIVE
- RAM Memory Size: 36KB
- RAM Size: 36KB
- Supply Voltage Range: 3V to 3.6V
- Termination Type: Surface Mount Device
