Omschrijving

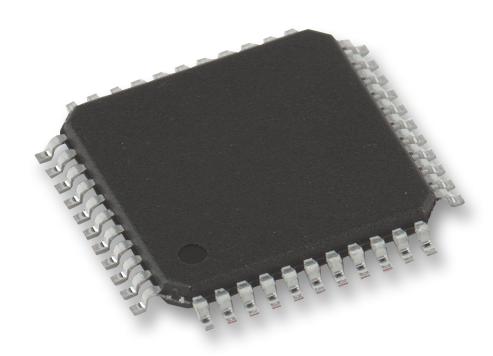

NXP - MC9S08AW60MFGE - 8 Bit MCU, General Purpose AW Series, S08 Family S08AW Series Microcontrollers, 40 MHz, 60 KB, 2 KB
- Product Range: S08 Family S08AW Series Microcontrollers
- CPU Speed: 40MHz
- Program Memory Size: 60KB
- RAM Memory Size: 2KB
- No. of Pins: 44Pins
- MCU Case Style: LQFP
- No. of I/O's: 34I/O's
- Embedded Interface Type: I2C, SCI, SPI
- Supply Voltage Min: 2.7V
- Supply Voltage Max: 5.5V
- MCU Family: S08
- MCU Series: S08AW
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Clock Frequency: 20MHz
- Controller Family/Series: S08AW
- Flash Memory Size: 60KB
- MPU Core Size: 8bit
- Memory Type: Flash
- Microprocessor/Controller Features: Optional computer operating properly (COP) reset, Low-voltage detection with reset or interrupt, Illegal opcode detection with reset, Power-Saving Modes Wait plus two stops, Master reset pin and power-on reset
- No. of ADC Inputs: 16
- No. of Bits: 8bit
- No. of PWM Channels: 8
- No. of Timers: 2
- Number of bits in ADC: 10
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
