Omschrijving

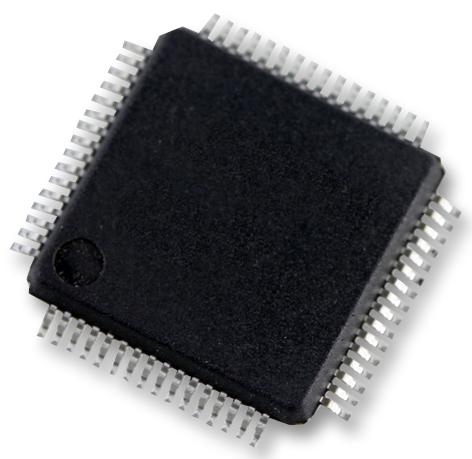

NXP - MC9S08DZ128CLH - 8 Bit MCU, Embedded CAN, S08 Family S08DZ Series Microcontrollers, 40 MHz, 128 KB, 8 KB, 64 Pins
- Product Range: S08 Family S08DZ Series Microcontrollers
- CPU Speed: 40MHz
- Program Memory Size: 128KB
- RAM Memory Size: 8KB
- No. of Pins: 64Pins
- MCU Case Style: LQFP
- No. of I/O's: 54I/O's
- Embedded Interface Type: CAN, I2C, SCI, SPI
- Supply Voltage Min: 2.7V
- Supply Voltage Max: 5.5V
- MCU Family: S08
- MCU Series: S08DZ
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Clock Frequency: 20MHz
- Controller Family/Series: S08D
- EEPROM Memory Size: 2KB
- Flash Memory Size: 128KB
- MPU Core Size: 8bit
- No. of ADC Inputs: 24
- No. of PWM Channels: 14
- No. of Timers: 2
- Number of bits in ADC: 12
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External
- Peripherals: ADC, RTC, TPM
- Program Memory Size: 128KB
- Supply Voltage Range: 2.7V to 5.5V
- Termination Type: Surface Mount Device
