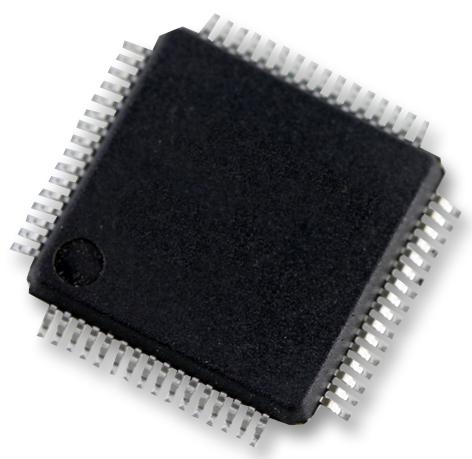

NXP - MC9S08JM60CQH - MCU-Application Specific 8 bit, HCS08, 8 MHz, 4 KB RAM/60 KB Program, 2.7 V to 5.5 V in, QFP-64
- Product Range: S08 Family S08JM Series Microcontrollers
- Architecture: S08
- MCU Core Size: 8bit
- Program Memory Size: 60KB
- RAM Memory Size: 4KB
- CPU Speed: 8MHz
- No. of I/O's: 51I/O's
- MCU Case Style: QFP
- No. of Pins: 64Pins
- Embedded Interface Type: I2C, SCI, SPI
- MCU Applications: USB Microcontroller
- Supply Voltage Min: 2.7V
- Supply Voltage Max: 5.5V
- MCU Family: S08
- MCU Series: S08JM
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Clock Frequency: 24MHz
- Controller Family/Series: HCS08
- Flash Memory Size: 60KB
- MPU Core Size: 8bit
- Memory Type: Flash
- Microprocessor/Controller Features: 256b USB RAM, RTC, LVD, KBI, V Reg, COP, Analog Comp
- No. of ADC Inputs: 12
- No. of Bits: 8bit
- No. of External Interrupts: 8
- No. of PWM Channels: 8
- No. of Timers: 2
- Number of bits In Timer: 16
- Number of bits in ADC: 12
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
