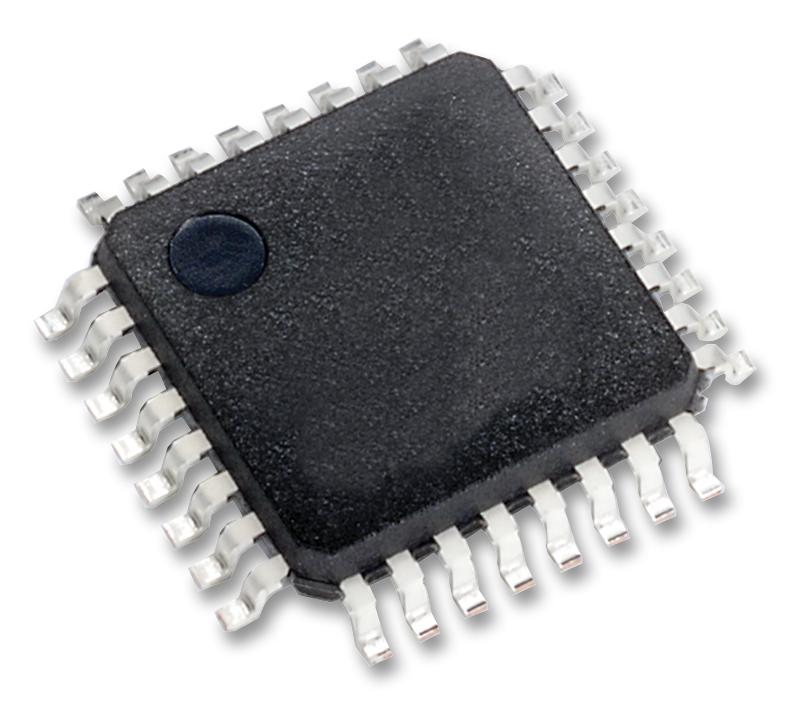

NXP - MC9S08QE8CLC - 8 Bit MCU, QE Series, S08 Family S08QE Series Microcontrollers, 20 MHz, 8 KB, 32 Pins, LQFP
- Product Range: S08 Family S08QE Series Microcontrollers
- CPU Speed: 20MHz
- Program Memory Size: 8KB
- RAM Memory Size: 512Byte
- No. of Pins: 32Pins
- MCU Case Style: LQFP
- No. of I/O's: 26I/O's
- Embedded Interface Type: I2C, SCI, SPI
- Supply Voltage Min: 1.8V
- Supply Voltage Max: 3.6V
- MCU Family: S08
- MCU Series: S08QE
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Controller Family/Series: S08QE
- Flash Memory Size: 8KB
- MPU Core Size: 8bit
- Memory Type: Flash
- Microprocessor/Controller Features: COP, DBG, RTC, Analog Comparator
- No. of ADC Inputs: 10
- No. of Bits: 8bit
- No. of External Interrupts: 8
- No. of PWM Channels: 6
- No. of Timers: 2
- Number of bits In Timer: 8
- Number of bits in ADC: 12
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: ADC, Comparator, PWM, RTC, Timer
- Program Memory Size: 8KB
- Serial Comms: I2C, SCI, SPI
