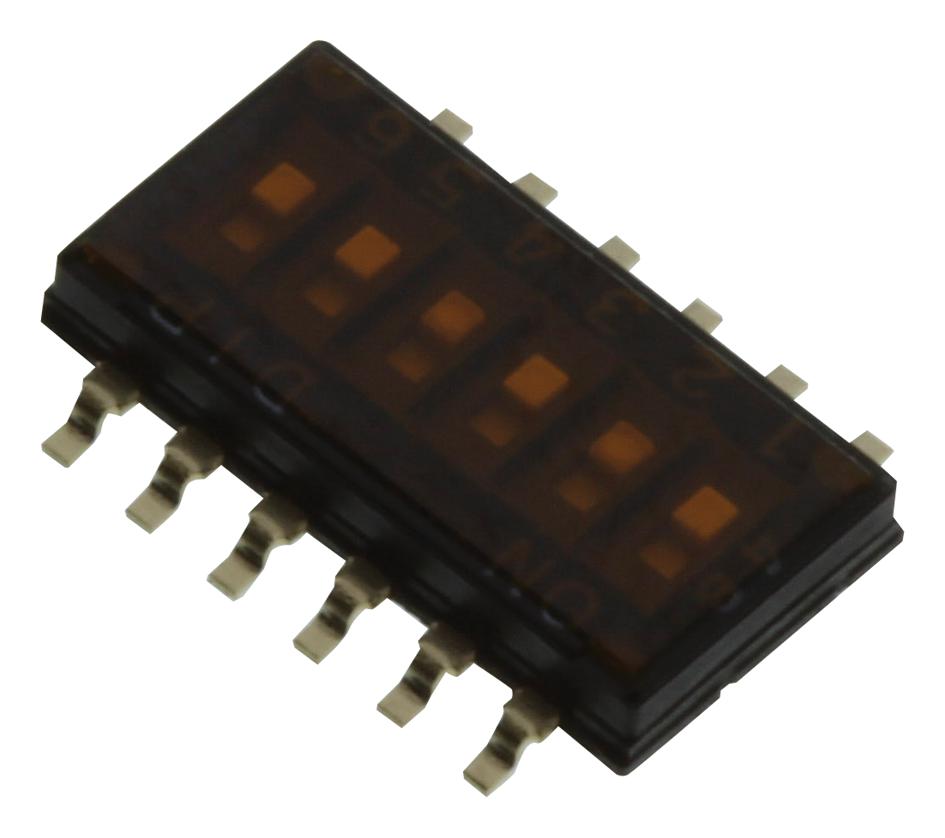

MCDHN-06F-T-V Switch, Dip, SMD, 6 Way multicomp Pro

MULTICOMP PROSKU:MCDHN-06F-T-V Bestelcode:1605480

Prijs:
Actie prijs€3,32

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (18169 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - MCDHN-06F-T-V - DIP Switch, Slide Actuator, 6 Circuits, Half Pitch, SPST, 24 VDC, 25 mA, SMD

  • No. of Circuits: 6Circuits
  • Switch Actuator Style: Flush Slide
  • Switch Mounting: SMD
  • Contact Configuration: SPST
  • Contact Voltage DC Max: 24VDC
  • Contact Current DC Max: 25mA
  • Product Range: MCDHN Series
  • Switch Type: DIP Sealed
  • SVHC: No SVHC (15-Jan-2019)
  • Contact Resistance: 100mohm
  • Dielectric Strength VDC: 300VAC
  • External Diameter: 4.5mm
  • External Length / Height: 1.5mm
  • External Width: 8.85mm
  • Flammability Rating: UL 94V-0
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 500VDC
  • Lead Spacing: 1.27mm
  • Material: High Temperature Thermoplastic
  • No. of Electrical Operations: 1000
  • No. of Mechanical Operations: 1000
  • No. of Positions: 6Ways
  • Operating Force: 4.9N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Pin Configuration: DIP
  • Pitch Spacing: 1.27mm
  • Row Pitch: 7.4mm
  • Storage Temperature Max: 85°C
  • Storage Temperature Min: -40°C
  • Switching Current DC Max: 25mA
  • Travel: 0.6mm
