MCEI-02 Switch, Dil, Low, 2WAY multicomp Pro

MULTICOMP PROSKU:MCEI-02 Bestelcode:1523984

Prijs:
Actie prijs€1,91

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1723 units)

Documenten en downloads

Omschrijving

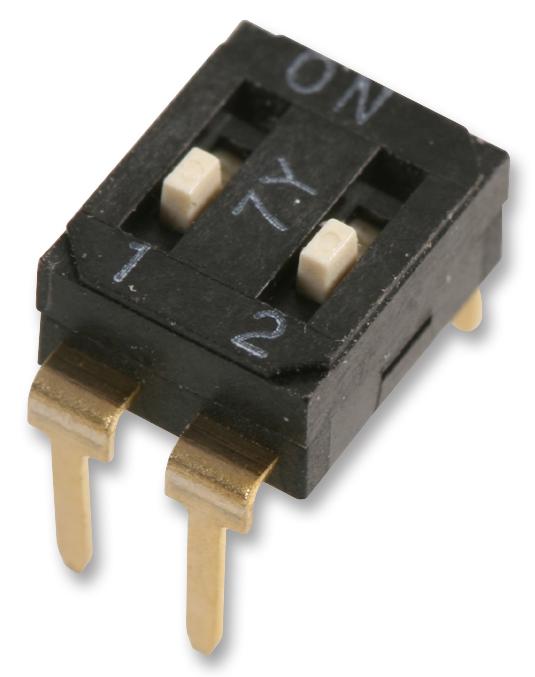

MULTICOMP PRO - MCEI-02 - DIP / SIP Switch, 2 Circuits, Slide, Through Hole, SPST, 24 VDC, 25 mA

  • No. of Circuits: 2Circuits
  • Switch Actuator Style: Slide
  • Switch Mounting: Through Hole
  • Contact Configuration: SPST
  • Contact Voltage DC Max: 24VDC
  • Contact Current DC Max: 25mA
  • Product Range: MCEI Series
  • Switch Type: DIP
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Raised
  • Colour: Black
  • Contact Plating: Gold Plated Contacts
  • Contact Resistance: 100mohm
  • Contact Resistance Voltage: 500VDC
  • Current Rating: 25mA
  • Dielectric Strength VDC: 500VAC
  • External Depth: 6mm
  • External Width: 4.98mm
  • Flammability Rating: UL94V-0
  • Height: 2.8mm
  • Height Max: 3.2mm
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 500VDC
  • Lead Length: 3.5mm
  • Lead Spacing: 2.54mm
  • No. of Electrical Operations: 2000
  • No. of Mechanical Operations: 2000
  • No. of Positions: 2Ways
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -20°C
  • Pin Configuration: DIL
  • Pitch Spacing: 2.54mm
  • Row Pitch: 7.62mm
  • Storage Temperature Max: 85°C
  • Storage Temperature Min: -40°C
  • Terminal Plating: Gold
  • Travel: 1mm
