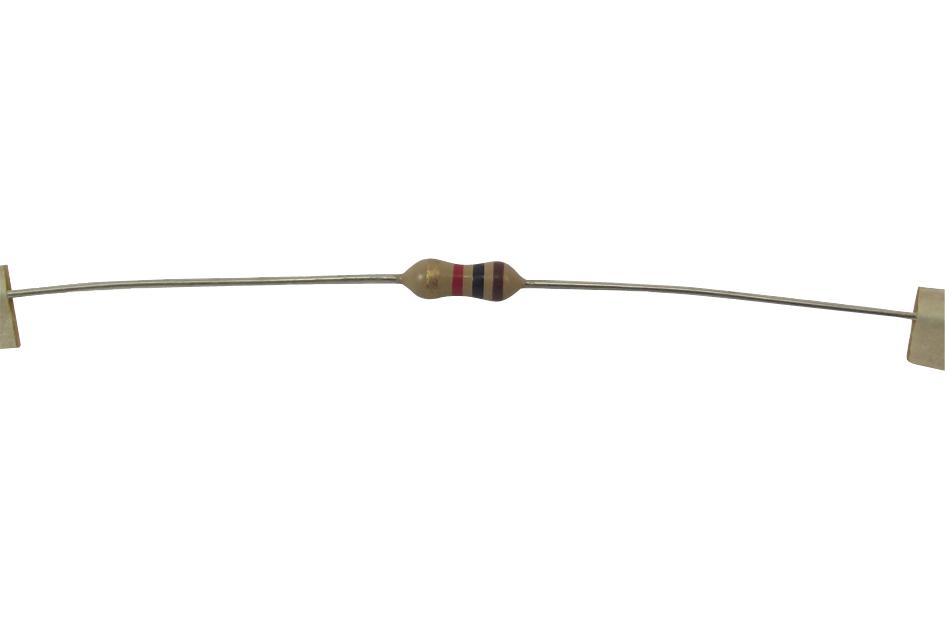

MULTICOMP PRO - MCF 1W 220R - Through Hole Resistor, 220 ohm, MCF, 1 W, ± 5%, Axial Leaded, 500 V
- Resistance: 220ohm
- Product Range: MCF Series
- Power Rating: 1W
- Resistance Tolerance: ± 5%
- Resistor Case Style: Axial Leaded
- Voltage Rating: 500V
- Resistor Element Material: Carbon Film
- Temperature Coefficient: -450ppm/°C to 0ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Body Diameter: 5mm
- Box Quantity: 1000
- External Length / Height: 12mm
- Full Power Rating Temperature: 70°C
- Insulation Resistance: 10000Mohm
- Lead Diameter: 0.7mm
- Lead Length: 28mm
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +155°C
- Overload Voltage: 1000V
- Resistor Mounting: Through Hole
- Temperature Coeff. +: 0ppm/°C
- Temperature Coeff. -: -450ppm/°C
- Tolerance +: 5%
- Tolerance -: 5%
- Voltage Rating V DC: 500V
- Withstand Voltage: 1000V
