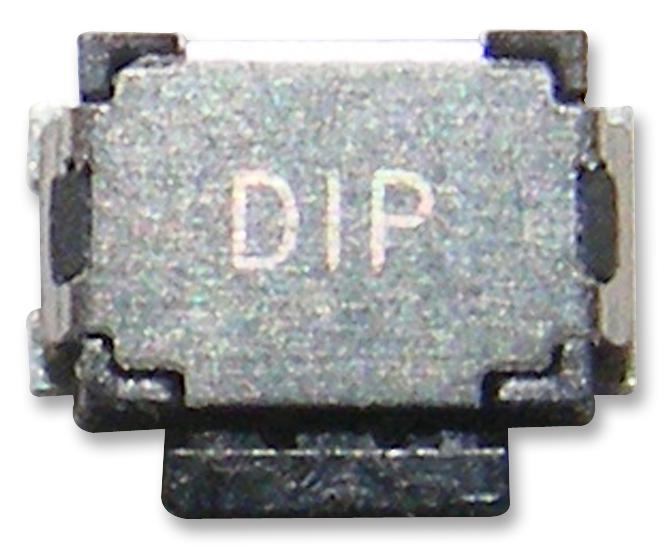

MCIPTG14K-V Switch, 2.8X3.8mm Horizontal Push multicomp Pro

MULTICOMP PROSKU:MCIPTG14K-V Bestelcode:1605469

Prijs:
Actie prijs€1,38

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2273 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - MCIPTG14K-V - Tactile Switch, MCIPT, Side Actuated, Surface Mount, Rectangular Button, 200 gf, 50mA at 12VDC

  • Product Range: MCIPT Series
  • Actuator Orientation: Side Actuated
  • Switch Mounting: SMD
  • Actuator Style: Rectangular Button
  • Actuating Force: 200gf
  • Contact Rating: 50mA at 12VDC
  • Switch Dimensions (L x W): 3.8mm x 2.8mm
  • IP Rating: -
  • Illumination: Non Illuminated
  • SVHC: No SVHC (15-Jan-2019)
  • Contact Configuration: SPST
  • Contact Current DC Max: 50mA
  • Contact Current Max: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Max: 12V
  • Contact Voltage DC Nom: 12V
  • Current Rating: 50mA
  • External Depth: 3.55mm
  • External Height: 1.42mm
  • External Length / Height: 1.42mm
  • External Width: 4.34mm
  • Height: 1.42mm
  • IP / NEMA Rating: IP40
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 100VDC
  • No. of Electrical Operations: 100000
  • Operating Force: 2.16N
  • Operating Force Max: 220gf
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -30°C
  • Switch Operation: Off-(On)
  • Switch Terminals: Solder
  • Travel: 0.25mm
  • Voltage Rating V DC: 12VDC
