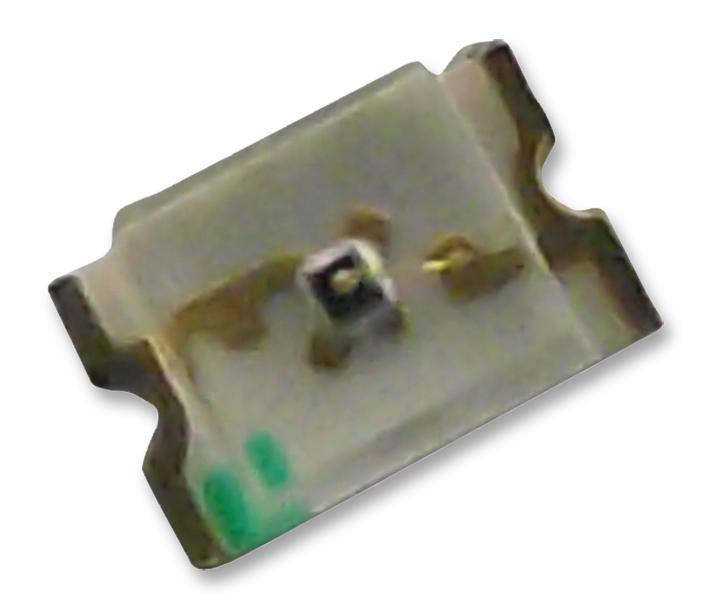

MCL-S270YC LED, SMD, 0805, Yellow multicomp Pro

MULTICOMP PROSKU:MCL-S270YC Bestelcode:1581241

Prijs:
Actie prijs€0,25

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (11090 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - MCL-S270YC - LED, Yellow, SMD, 0805 [2012 Metric], 20 mA, 2.1 V, 590 nm

  • LED Colour: Yellow
  • LED Mounting: SMD
  • LED Case Size: 0805
  • Forward Current If: 20mA
  • Forward Voltage: 2.1V
  • Wavelength Typ: 590nm
  • Luminous Intensity: 10mcd
  • Viewing Angle: 140°
  • Lens Shape: Rectangular
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 3 - 168 hours
  • SVHC: No SVHC (15-Jan-2019)
  • Bulb Size: 1.25mm x 1.4mm
  • Current Rating: 20mA
  • Dominant Wavelength: 590nm
  • Dominant Wavelength Typ: 590nm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.6V
  • LED / Lamp Size: 1.4mm x 1.25mm
  • LED Type: Standard
  • Luminous Intensity Max: 16mcd
  • Luminous Intensity Min: 4.5mcd
  • Luminous Intensity Typ: 10mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Peak Forward Current: 100mA
  • Peak Wavelength: 587nm
  • Reverse Protection Voltage: 5V
  • Storage Temperature Max: +100°C
  • Storage Temperature Min: -40°C
  • Voltage Vf Min: 1.7V
  • Voltage Vf Typ: 2.1V
