Omschrijving

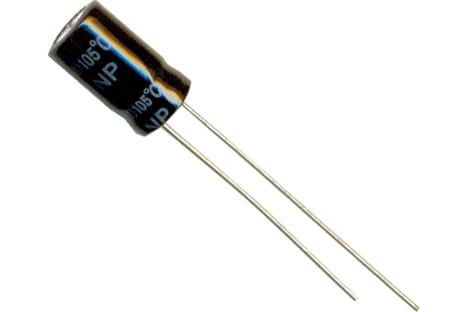

MULTICOMP PRO - MCNP35V106M5X11 - Electrolytic Capacitor, 10 µF, 35 V, ± 20%, Radial Leaded, 2000 hours @ 85°C, Bi-Polar [Non-Polar]
- Capacitance: 10µF
- Voltage Rating: 35V
- Product Range: MCNP Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 5mm
- Lead Spacing: 2mm
- Height: 11mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Lifetime @ Temperature: 2000 hours @ 85°C
- ESR: -
- Automotive Qualification Standard: -
- Capacitance Tolerance ±: ± 20%
- Capacitor Application: Bipolar
- External Length / Height: 11mm
- Lead Diameter: 0.5mm
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +85°C
- Operating life Time: 2000h
- Ripple Current AC: 40mA
- Ripple Current Frequency: 120Hz
- Ripple Current Temperature: 85°C
- Tolerance +: 20%
- Tolerance -: 20%
- Voltage Rating V DC: 35V
