Omschrijving

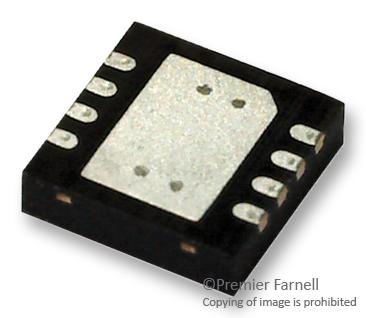

MICROCHIP - MCP14700-E/MF - MOSFET Driver IC, High Side And Low Side, 4.5V-5.5V Supply, 3.5A Out, 27ns Delay, DFN-8
- Driver Configuration: High Side and Low Side
- Peak Output Current: 3.5A
- Supply Voltage Min: 4.5V
- Supply Voltage Max: 5.5V
- Driver Case Style: DFN
- No. of Pins: 8Pins
- Input Delay: 27ns
- Output Delay: 27ns
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: AEC-Q100
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 14700
- Device Type: MOSFET Driver
- Module Configuration: High Side, Low Side
- Operating Temperature Range: -40°C to +125°C
- Output Resistance: 1ohm
- Supply Voltage Range: 4.5V to 5.5V
