Omschrijving

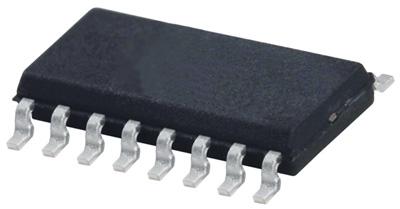

MICROCHIP - MCP3304-CI/SL - Analogue to Digital Converter, Quad, 13 bit, 100 kSPS, Differential, Single Ended, Serial, SPI
- Resolution (Bits): 13bit
- Sampling Rate: 100kSPS
- Input Channel Type: Differential, Single Ended
- Data Interface: Serial, SPI
- Supply Voltage Type: Single
- Supply Voltage Min: 4.5V
- Supply Voltage Max: 5.5V
- ADC / DAC Case Style: SOIC
- No. of Pins: 16Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: Quad 13-Bit SAR ADCs
- Automotive Qualification Standard: AEC-Q100
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 3304
- IC Case Style: SOIC
- Linearity Error ADC / DAC +: 1LSB
- No. of Bits: 13bit
- No. of Channels: 8Channels
- Operating Temperature Range: -40°C to +85°C
- Supply Current: 300µA
- Supply Voltage Range: 2.7V to 5.5V
- Supply Voltage Range - Analogue: 4.5V to 5.5V
- Termination Type: Surface Mount Device
