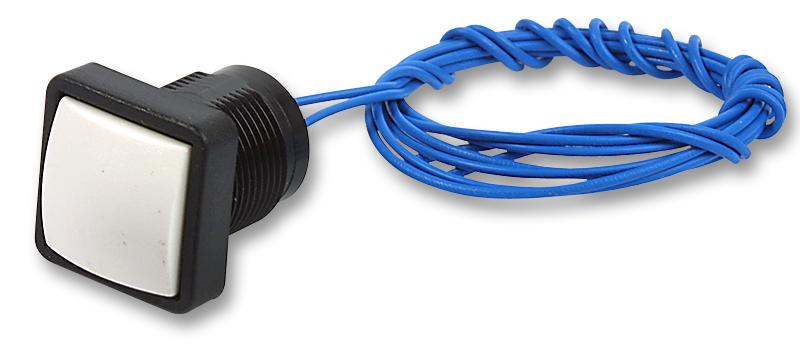

MULTICOMP PRO - MCPAS6-D1-M1CES1-5 - Industrial Pushbutton Switch, 13.6 mm, SPST, Off-(On), Square, White
- Switch Operation: Off-(On)
- Contact Configuration: SPST
- Contact Voltage AC Nom: 48V
- Contact Voltage DC Nom: 50V
- Contact Current Max: 500mA
- Switch Terminals: Solder Lug
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Actuator / Cap Colour: White
- Contact Current AC Max: 400mA
- Contact Current DC Max: 100mA
- Contact Resistance: 50mohm
- Contact Voltage VAC: 32V
- Contact Voltage VDC: 50V
- IP Rating: IP67
- Illumination Colour: Non-illuminated
- No. of Mechanical Operations: 1000000
- Operating Force: 5N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Panel Cutout Diameter: 13.6mm
- Pushbutton Actuator Style: Square
- Pushbutton Switch Type: Industrial
- Switch Mounting: Panel
