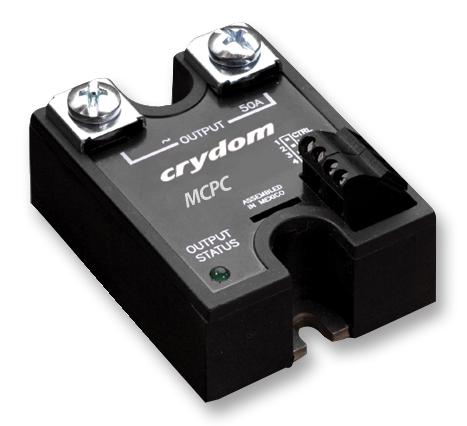

MCPC2450A Relay, S/S, Prop Control, 50A, 240Vac SENSATA/Crydom

SENSATA/CRYDOMSKU:MCPC2450A Bestelcode:1613884

Prijs:
Actie prijs€193,65

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (6 units)

Documenten en downloads

Omschrijving

SENSATA/CRYDOM - MCPC2450A - Solid State Relay, 50 A, 280 VAC, Panel Mount, Screw

  • Contact Configuration: -
  • Load Current: 50A
  • Operating Voltage Max: 280VAC
  • Relay Mounting: Panel
  • Relay Terminals: Screw
  • Switching Mode: -
  • Operating Voltage Min: 24VAC
  • Control Voltage Min: 8VDC
  • Control Voltage Max: 32VDC
  • Product Range: MCPC Series
  • SVHC: No SVHC (12-Jan-2017)
  • Blocking voltage: 600V
  • Control Current Max: 30mA
  • Control Current Min: 28mA
  • Control Voltage DC Max: 32VDC
  • Control Voltage DC Min: 8VDC
  • Control Voltage Range: 8V DC to 32V DC
  • Control Voltage Type: DC
  • External Depth: 58.4mm
  • External Length / Height: 19.8mm
  • External Width: 45.7mm
  • I2t: 1620s
  • Input Voltage Max: 5VDC
  • Input Voltage Min: 0V
  • Insulation Resistance: 1000Mohm
  • Isolation Voltage: 4kV
  • Leakage Current: 7mA
  • Load Current Max: 50A
  • Load Current Min: 150mA
  • Load Current RMS Max: 50A
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -20°C
  • Operating Voltage Range: 24V AC to 280V AC
  • Output Type: SCR
  • RMS Load Current Min: 150mA
  • RMS Load Voltage Max: 280V
  • RMS Load Voltage Min: 180V
  • Surge Current: 625A
