Omschrijving

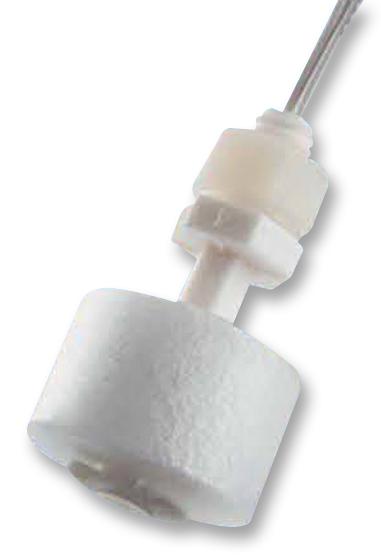

MULTICOMP PRO - MCPLS-041-A-6 - Float Switch, MCPLS Series, Vertical, SPST-NO, Polypropylene, 250 Vac, 24mm Diameter
- Operating Pressure Max: -
- Sensor Body Material: PP (Polypropylene)
- Output Current: 2A
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- AC Power: 50VA
- Body Material: PP (Polypropylene)
- Contact Configuration: SPST-NO
- Contact Current AC Max: 2A
- Contact Voltage AC Max: 250V
- DC Power: 50W
- Differential Travel Max: 18.5mm
- External Length / Height: 53mm
- Float Diameter: 24mm
- Lead Length: 300mm
- Material: PP
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
- Switch Operation: Off-On
- Switching Current AC Max: 1.5A
- Switching Current DC Max: 1.5A
- Switching Voltage AC / DC Max: 200VDC
- Switching Voltage AC / DC Min: 250VAC
- Thread Size: M8
