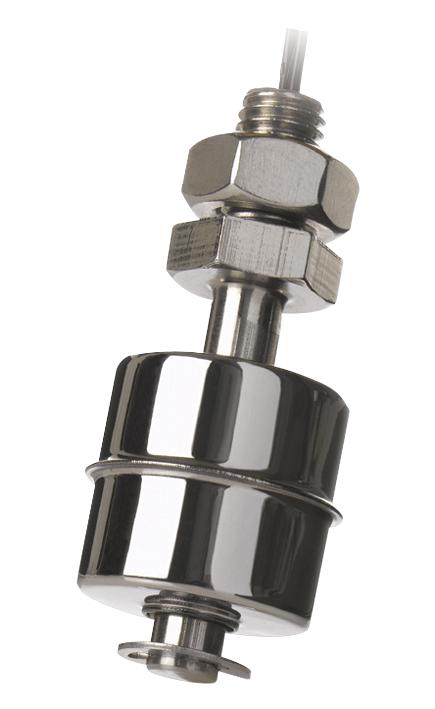

MULTICOMP PRO - MCPLS-045A-3VAI - Float Switch, MCPLS Series, Vertical, SPST-NO, Stainless Steel, 140 Vac, 28.4mm Diameter
- Operating Pressure Max: -
- Sensor Body Material: Stainless Steel
- Output Current: 1A
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- AC Power: 10VA
- Body Material: Stainless Steel
- Case Material: Stainless Steel
- Contact Configuration: SPST-NO
- Contact Current AC Max: 500mA
- Contact Resistance: 100mohm
- Contact Voltage AC Max: 140V
- Contact Voltage DC Max: 200V
- DC Power: 10W
- External Length / Height: 37.5mm
- Float Diameter: 28.4mm
- Material: V2A 304
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Switching Current AC Max: 500mA
- Switching Current DC Max: 500mA
- Thread Size: M10
