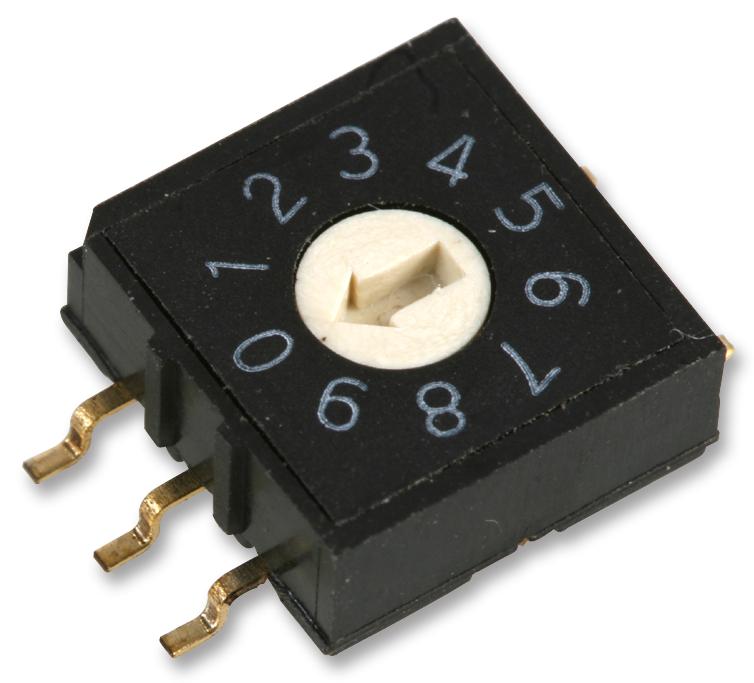

MCRM2AF-10R Rotary Dip Switch, SMD multicomp Pro

MULTICOMP PROSKU:MCRM2AF-10R Bestelcode:1522037

Prijs:
Actie prijs€4,27

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1722 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - MCRM2AF-10R - Rotary Switch, 10 Position, 2 Pole, 36 °, 250 V, MCRM

  • No. of Switch Positions: 10 Position
  • No. of Poles: 2 Pole
  • Angle of Throw: 36°
  • Contact Current AC Max: -
  • Contact Voltage AC Max: 250V
  • Product Range: MCRM Series
  • Illumination: Non Illuminated
  • Contact Current DC Max: 100mA
  • Contact Voltage DC Max: 50V
  • SVHC: No SVHC (15-Jan-2019)
  • Actuator Level: Flushed
  • Bezel Width: 9.8mm
  • Contact Resistance: 200mohm
  • External Depth: 10mm
  • External Length / Height: 4.1mm
  • External Width: 10mm
  • Flammability Rating: UL 94V-0
  • Insulation Resistance Voltage: 250VDC
  • No. of Electrical Operations: 20000
  • No. of Mechanical Operations: 20000
  • Operating Force Max: 400gf
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -25°C
  • Output Code: BCD
  • Pin Configuration: 3 x 2
  • Proof Voltage: 250VAC
  • Switch Mounting: SMD
  • Switching Current: 25mA
  • Switching Voltage: 24VDC
