MCRR25333X7RK0050 Cap, 0.033µF, 50V, 10%, X7R multicomp

MULTICOMPSKU:MCRR25333X7RK0050 Bestelcode:1216436

Prijs:
Actie prijs€8,11

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1138 units)

Documenten en downloads

Omschrijving

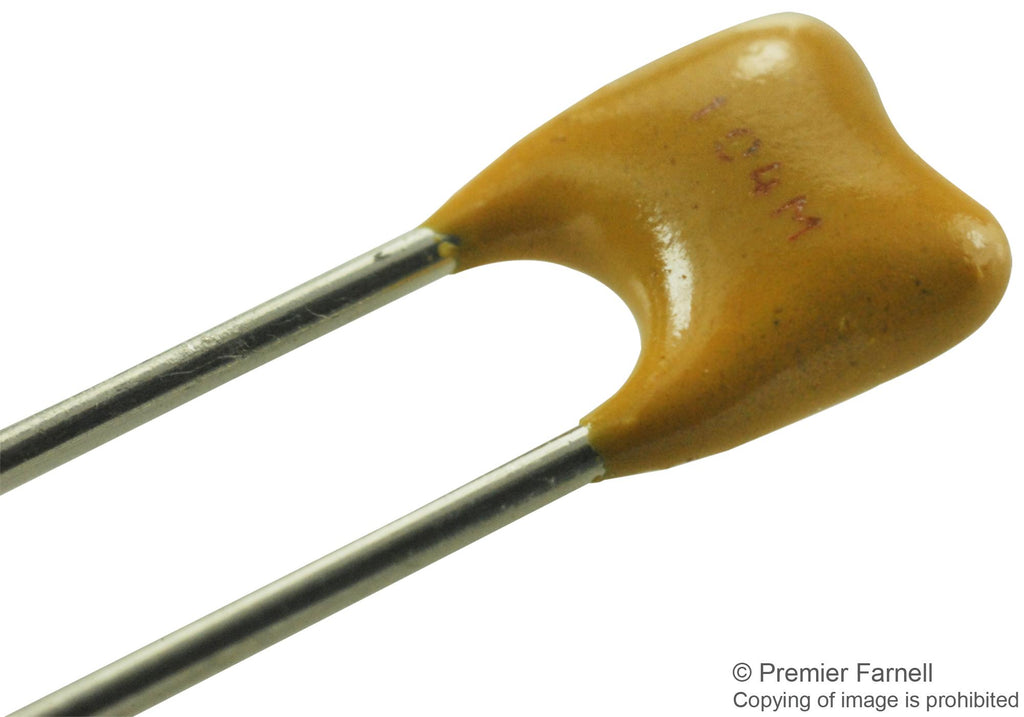

MULTICOMP - MCRR25333X7RK0050 - Multilayer Ceramic Capacitor, 33000 pF, 50 V, ± 10%, PC Pin, X7R, 2.54 mm

  • Capacitance: 33000pF
  • Voltage Rating: 50V
  • Product Range: MCRR Series
  • Capacitance Tolerance: ± 10%
  • Capacitor Terminals: Radial Leaded
  • Dielectric Characteristic: X7R
  • Lead Spacing: 2.54mm
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 125°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (07-Jul-2017)
  • Capacitance Tolerance ±: ± 10%
  • External Depth: 3.18mm
  • External Length / Height: 5.08mm
  • External Width: 5.08mm
  • Height: 5.08mm
  • Lead Diameter: 0.508mm
  • Lead Length: 25.4mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -55°C to +125°C
  • Temperature Coeff. +: 20ppm/°C
  • Temperature Coefficient: +20ppm/°C
  • Tolerance +: 10%
  • Tolerance -: 10%
  • Voltage Rating V DC: 50V
