MCSP103A 1123LBL.GN Fan, 120X120X38MM, 115VAC multicomp

MULTICOMPSKU:MCSP103A 1123LBL.GN Bestelcode:1568424

Prijs:
Actie prijs€40,35

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (79 units)

Documenten en downloads

Omschrijving

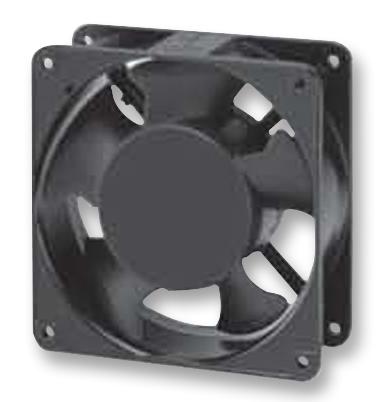

MULTICOMP - MCSP103A 1123LBL.GN - AC Axial Fan, 115V, Square, 120 mm, 38 mm, Ball Bearing, 78 CFM

  • Supply Voltage: 115V
  • Current Type: AC
  • Fan Frame Size: 120mm
  • External Depth: 38mm
  • Noise Rating: 39dBA
  • Flow Rate - Imperial: 78cu.ft/min
  • Flow Rate - Metric: 132.5m³/h
  • Bearing Type: Ball
  • Power Connection Type: 2 Lead Wires
  • Current Rating: 130mA
  • Product Range: MCSP103A Series
  • Power Rating: -
  • IP Rating: -
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: CE, TUV, UL, VDE
  • Current Consumption: 0.13A
  • External Height: 120mm
  • External Width: 120mm
  • Frame Dimensions: 120mm x 120mm x 38mm
  • Frequency Max: 60Hz
  • Frequency Min: 50Hz
  • Lead Length: 310mm
  • Power Consumption: 11W
  • Speed Range Max: 2300rpm
