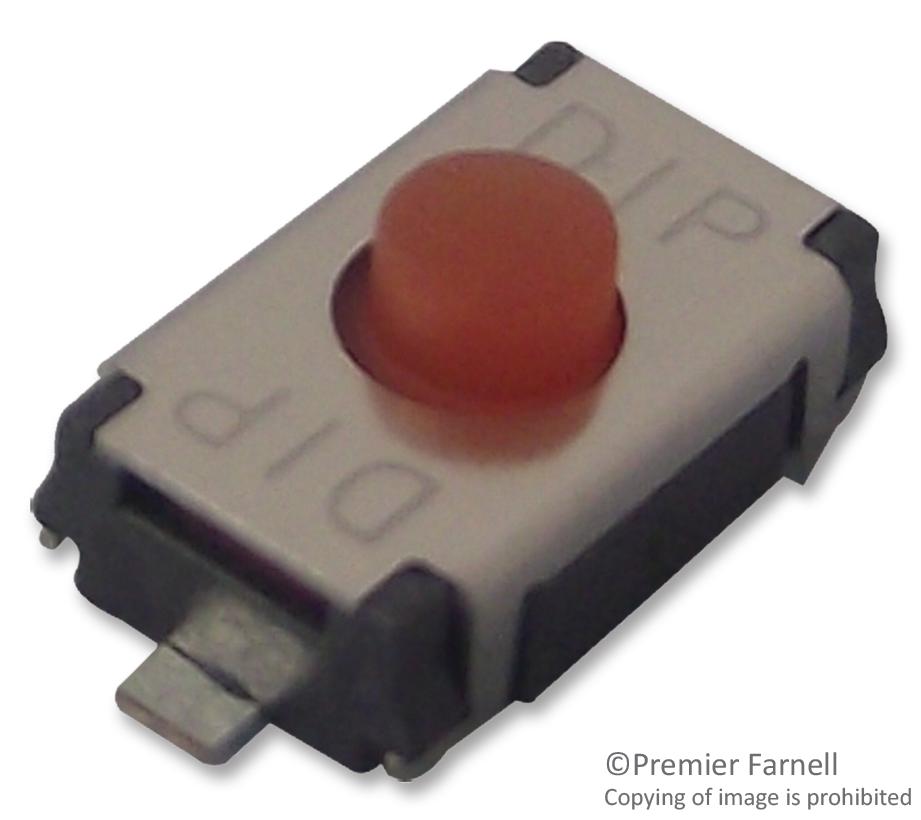

MCTAEF-25N-V Switch, SPST, 0.025A, 24V, SMD multicomp Pro

MULTICOMP PROSKU:MCTAEF-25N-V Bestelcode:1605484

Prijs:
Actie prijs€1,34

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (12939 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - MCTAEF-25N-V - Tactile Switch, MCTAEF, Top Actuated, Surface Mount, Round Button, 200 gf, 50mA at 12VDC

  • Product Range: MCTAEF Series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: SMD
  • Actuator Style: Round Button
  • Actuating Force: 200gf
  • Contact Rating: 50mA at 12VDC
  • Switch Dimensions (L x W): 6mm x 3.8mm
  • IP Rating: -
  • Illumination: Non Illuminated
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Top
  • Actuator / Cap Colour: Red
  • Contact Configuration: SPST-NO
  • Contact Current Max: 25mA
  • Contact Voltage DC Nom: 24V
  • External Depth: 3.8mm
  • External Length / Height: 6mm
  • External Width: 7mm
  • Height: 1.7mm
  • Insulation Resistance: 100Mohm
  • No. of Electrical Operations: 200000
  • Operating Force: 1.96N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Pre-travel: 0.3mm
  • Switch Terminals: Solder
