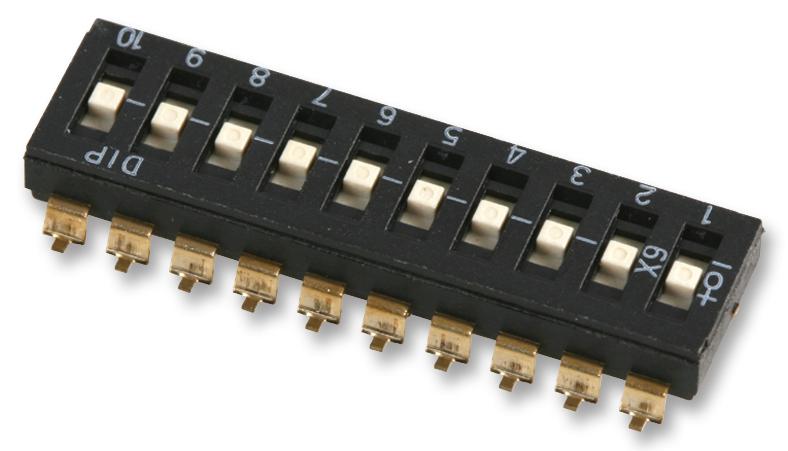

MCTIMR-10 Switch, Dil, Tri-State, SMD, 10WAY multicomp Pro

MULTICOMP PROSKU:MCTIMR-10 Bestelcode:1522016

Prijs:
Actie prijs€3,59

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (306 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - MCTIMR-10 - DIP / SIP Switch, 10 Circuits, Slide, Surface Mount, SPDT, 24 VDC, 25 mA

  • No. of Circuits: 10Circuits
  • Switch Actuator Style: Slide
  • Switch Mounting: SMD
  • Contact Configuration: SPDT
  • Contact Voltage DC Max: 24VDC
  • Contact Current DC Max: 25mA
  • Product Range: Tri-State Series
  • Switch Type: DIP
  • SVHC: No SVHC (15-Jan-2019)
  • Contact Resistance: 100mohm
  • Current Rating: 25mA
  • Dielectric Strength VDC: 500VAC
  • External Depth: 7mm
  • External Length / Height: 3.7mm
  • External Width: 26.56mm
  • Lead Spacing: 2.54mm
  • No. of Electrical Operations: 2000
  • No. of Mechanical Operations: 2000
  • No. of Positions: 10Ways
  • Operating Force Max: 1000gf
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -20°C
  • Pin Configuration: DIL
  • Pitch Spacing: 2.54mm
  • Row Pitch: 7.62mm
  • Storage Temperature Max: 85°C
  • Storage Temperature Min: -40°C
  • Terminal Plating: Gold
  • Travel: 0.8mm
