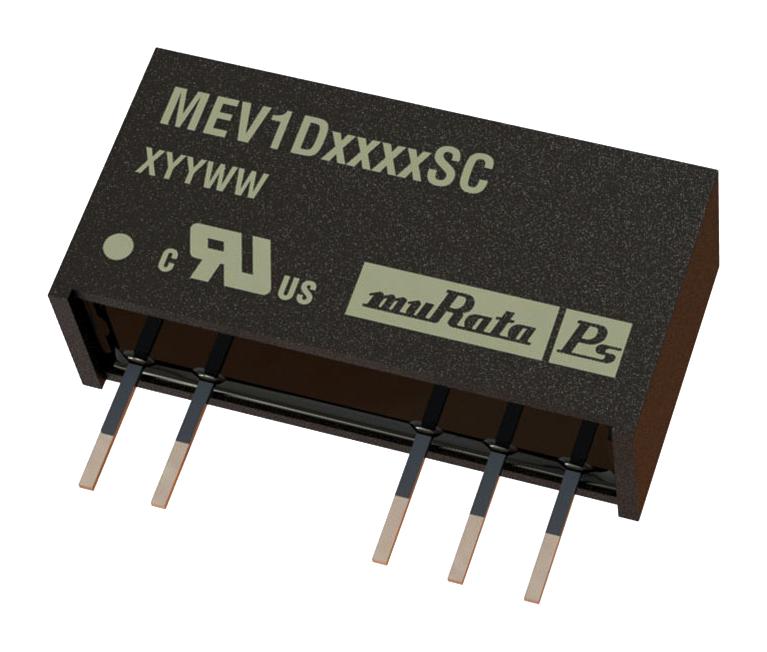

MEV1D2415SC DC/DC, 1W 24V TO +/-15V Sip, 3KVDC ISO Murata Power Solutions

MURATA POWER SOLUTIONSSKU:MEV1D2415SC Bestelcode:2065627

Prijs:
Actie prijs€9,56

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (53 units)

Omschrijving

MURATA POWER SOLUTIONS - MEV1D2415SC - Isolated Through Hole DC/DC Converter, ITE, 1:1, 1 W, 2 Output, 15 V, 33 mA

  • No. of Outputs: 2 Output
  • Output Power Max: 1W
  • Output Voltage - Output 1: 15V
  • Output Current - Output 1: 33mA
  • Output Voltage - Output 2: -15V
  • Output Current - Output 2: 33mA
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: MEV1 Series
  • Input Voltage DC Min: 21.6V
  • Input Voltage DC Max: 26.4V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: SIP
  • DC / DC Converter Mounting: Through Hole
  • Width: 19.65mm
  • Height: 10.15mm
  • Depth: 6.15mm
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: UL
  • Approvals & Standards: UL
  • Isolation Voltage: 3kV
  • No. of Outputs: 2Outputs
  • Power Rating: 1W
  • Supply Voltage: 24V
