mF-MSMF014-2 MULTIFUSE, SMD, 0.14A Bourns

BOURNSSKU:MF-MSMF014-2 Bestelcode:9350284

Prijs:
Actie prijs€0,54

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (21665 units)

Documenten en downloads

Omschrijving

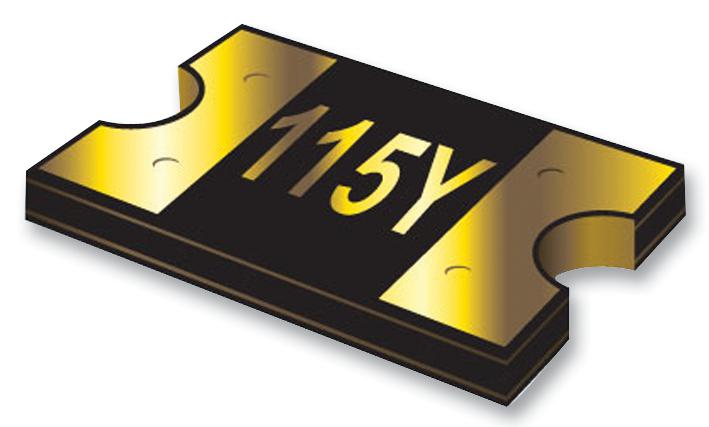

BOURNS - MF-MSMF014-2 - Resettable Fuse, PPTC, 1812 (4532 Metric), MF-MSMF, 60 VDC, 140 mA, 340 mA, 0.15 s

  • Thermistor Mounting: SMD
  • Product Range: MF-MSMF Series
  • Holding Current: 140mA
  • Tripping Current: 340mA
  • Voltage Rating: 60V
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: AEC-Q200
  • SVHC: No SVHC (15-Jan-2018)
  • Carrying Current Max: 40A
  • Case Material: Epoxy polymer
  • Current Max: 40A
  • External Depth: 0.685mm
  • External Length / Height: 3.24mm
  • External Width: 4.55mm
  • Holding Current Max Ih: 0.14A
  • Initial Resistance Max: 6.5ohm
  • Initial Resistance Min: 0.4ohm
  • Operating Voltage: 60V
  • PTC Fuse Case Style: 1812 [4532 Metric]
  • Pitch Max: 4.73mm
  • Pitch Min: 4.37mm
  • Resistance: 0.4ohm
  • Resistance @ Temperature: 6.5ohm
  • Resistance Temperature: 23°C
  • Surface Tripped Temperature Max: 125°C
  • Termination Type: Surface Mount Device
  • Thermistor Type: PTC Resettable Fuse
