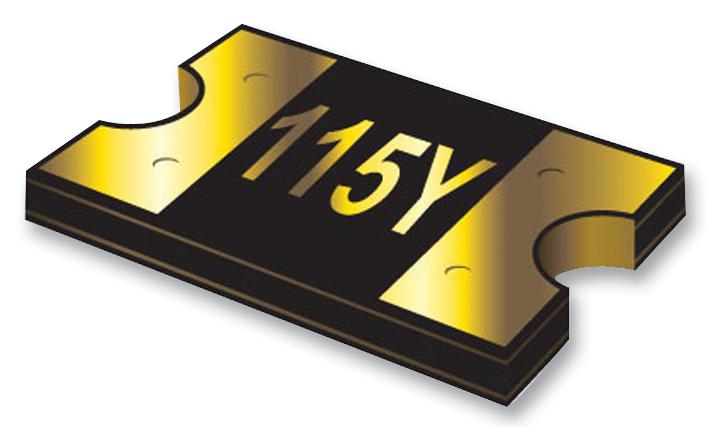

mF-MSMF030-2 MULTIFUSE, SMD, 1812, 0.3a Bourns

BOURNSSKU:MF-MSMF030-2 Bestelcode:1652168

Prijs:
Actie prijs€0,54

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (11897 units)

Documenten en downloads

Omschrijving

BOURNS - MF-MSMF030-2 - Resettable Fuse, PPTC, 1812 (4532 Metric), MF-MSMF, 30 VDC, 300 mA, 600 mA, 0.1 s

  • Thermistor Mounting: SMD
  • Product Range: MF-MSMF Series
  • Holding Current: 300mA
  • Tripping Current: 600mA
  • Voltage Rating: 30V
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: AEC-Q200
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: CSA, TUV
  • Approval Category: UL Recognised
  • Carrying Current Max: 10A
  • Current Max: 10A
  • External Depth: 0.9mm
  • External Length / Height: 3.24mm
  • External Width: 4.55mm
  • Holding Current Max Ih: 0.3A
  • Initial Resistance Max: 3ohm
  • Operating Voltage: 30V
  • PTC Fuse Case Style: 1812 [4532 Metric]
  • Resistance: 0.3ohm
  • Resistance @ Temperature: 3ohm
  • Resistance Temperature: 23°C
  • Surface Tripped Temperature Max: 125°C
  • Termination Type: Surface Mount Device
  • Thermistor Type: PTC Resettable Fuse
  • Trip Time: 0.1s
