mF-SM250-2 MULTIFUSE, SMD, 2.5A Bourns

BOURNSSKU:MF-SM250-2 Bestelcode:9350268

Prijs:
Actie prijs€0,89

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (220 units)

Documenten en downloads

Omschrijving

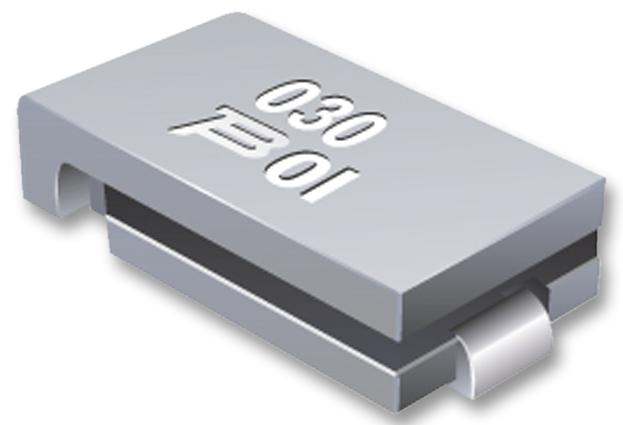

BOURNS - MF-SM250-2 - Resettable Fuse, PPTC, 3425 (8763 Metric), MF-SM, 15 VDC, 2.5 A, 5 A, 25 s

  • Thermistor Mounting: SMD
  • Product Range: MF-SM Series
  • Holding Current: 2.5A
  • Tripping Current: 5A
  • Voltage Rating: 15V
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: AEC-Q200
  • SVHC: No SVHC (15-Jan-2018)
  • Carrying Current Max: 100A
  • Case Material: Epoxy polymer
  • Current Max: 100A
  • Holding Current Max Ih: 2.5A
  • Initial Resistance Max: 0.085ohm
  • Initial Resistance Min: 0.024ohm
  • Lead Length: 0.43mm
  • Operating Voltage: 15V
  • PTC Fuse Case Style: SMD
  • Resistance Temperature: 23°C
  • Surface Tripped Temperature Max: 125°C
  • Tab Width: 0.71mm
  • Termination Type: Surface Mount Device
  • Thermistor Type: PTC Resettable Fuse
