MFB30G12 Fan, 30mm, 12VDC SEPA

SEPASKU:MFB30G12 Bestelcode:1217964

Prijs:
Actie prijs€35,68

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (108 units)

Documenten en downloads

Omschrijving

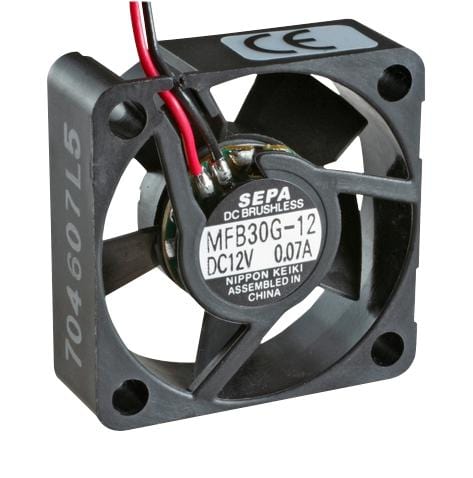

SEPA - MFB30G12 - DC Axial Fan, 12 V, Square, 30 mm, 10 mm, Ball Bearing, 4.54 CFM

  • Supply Voltage: 12V
  • Current Type: DC
  • Fan Frame Size: 30mm
  • External Depth: 10mm
  • Noise Rating: 23dBA
  • Flow Rate - Imperial: 4.54cu.ft/min
  • Flow Rate - Metric: 7.7m³/h
  • Bearing Type: Ball
  • Power Connection Type: 2 Lead Wires
  • Current Rating: 70mA
  • Product Range: MFB30G Series
  • Power Rating: -
  • IP Rating: -
  • SVHC: No SVHC (15-Jan-2019)
  • Blade Diameter: 28mm
  • External Height: 30mm
  • External Width: 30mm
  • Fixing Centres: 24mm
  • Fixing Hole Diameter: 3.2mm
  • Frame Dimensions: 30mm x 30mm x 10mm
  • Input Voltage Max: 13.8VDC
  • Input Voltage Min: 10.2VDC
  • Lead Length: 150mm
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -10°C
  • Pressure Max: 36Pa
  • Supply Voltage DC Max: 13.8V
  • Supply Voltage DC Min: 10.2V
