Omschrijving

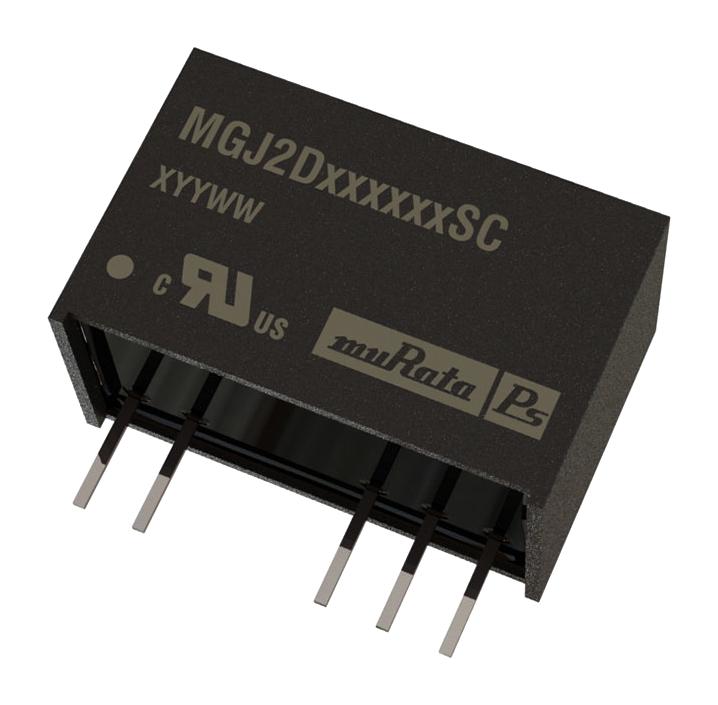

MURATA POWER SOLUTIONS - MGJ2D122005SC - Isolated Through Hole DC/DC Converter, Gate Drive, 1:1, 2 W, 2 Output, 20 V, 80 mA
- No. of Outputs: 2 Output
- Output Power Max: 2W
- Output Voltage - Output 1: 20V
- Output Current - Output 1: 80mA
- Output Voltage - Output 2: -5V
- Output Current - Output 2: 40mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: MGJ2 Series
- Input Voltage DC Min: 10.8V
- Input Voltage DC Max: 13.2V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 9.95mm
- Height: 12.65mm
- Depth: 19.65mm
- SVHC: No SVHC (07-Jul-2017)
- No. of Outputs: 2Outputs
