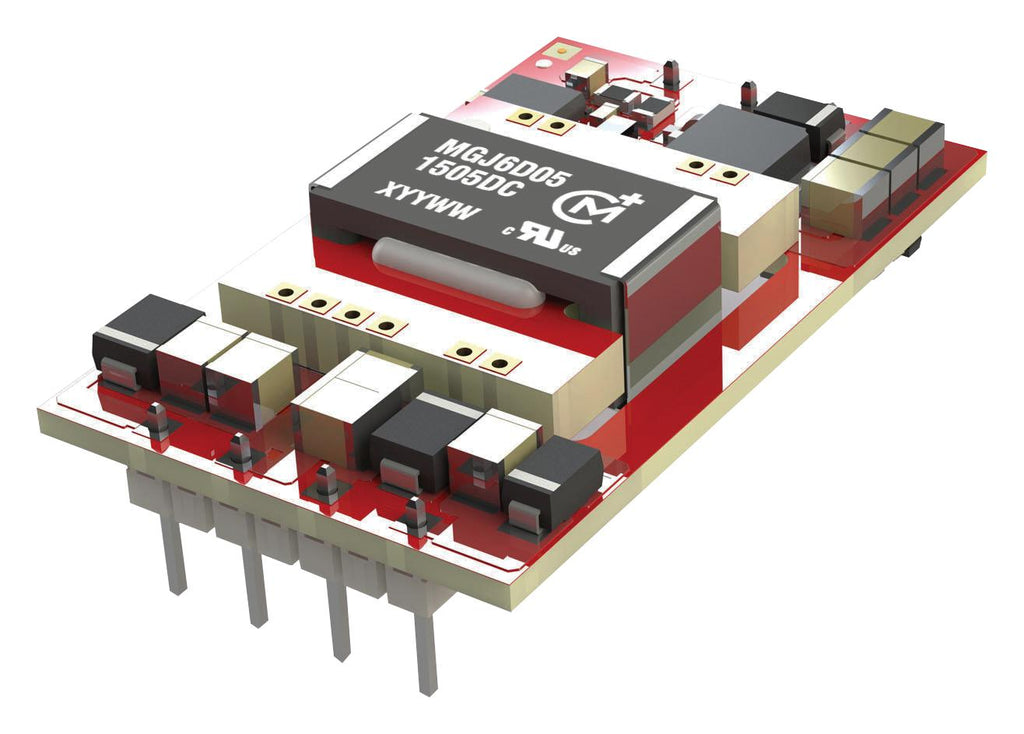

MURATA POWER SOLUTIONS - MGJ6D122005DC - Isolated Through Hole DC/DC Converter, Gate Drive, 2:1, 4.8 W, 2 Output, 20 V, 240 mA
- No. of Outputs: 2 Output
- Output Power Max: 4.8W
- Output Voltage - Output 1: 20V
- Output Current - Output 1: 240mA
- Output Voltage - Output 2: -5V
- Output Current - Output 2: 240mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: MGJ6 Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 18V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 27.81mm
- Height: 9.88mm
- Depth: 45.47mm
- SVHC: No SVHC (07-Jul-2017)
