Omschrijving

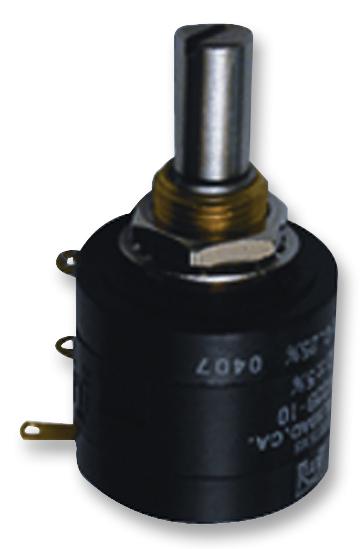

ETI SYSTEMS - MH22B-10-10K - Rotary Potentiometer, Wirewound, 10 kohm, 10 Turns, Linear, 2 W, ± 10%, MH22
- Track Resistance: 10kohm
- No. of Turns: 10Turns
- Track Taper: Linear
- Power Rating: 2W
- Resistance Tolerance: ± 10%
- Product Range: MH22 Series
- Potentiometer Mounting: Bushing
- Shaft Diameter: 6.35mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 20.83mm
- SVHC: No SVHC (07-Jul-2017)
- Linearity, +: 0.25%
- Linearity, -: 0.25%
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +105°C
- Resistor Element Material: Wirewound
- Rotation Electrical Angle: 3600°
- Rotation Mechanical Angle: 3600°
- Temperature Coefficient: ± 100ppm/°C
- Termination Type: Solder
